Creating an Elastic Kubernetes Service (EKS) cluster

Contents

Instructions on setting up a managed Kubernetes cluster on Amazon Web Services (AWS)

Prerequisites

You will need the following:

An Amazon account

Sign up or log in to AWS where you will create the k8s cluster. TODO Verify

aws cli

Command-line tool to manage resources in AWS. Get it Amazon.

eksctl

Amazons version of Kubectl, eksctl, allows you to run commands against Kubernetes clusters. Download it from Github

IAM user

With these permissions/roles at least: https://eksctl.io/usage/minimum-iam-policies/

Create an EKS cluster

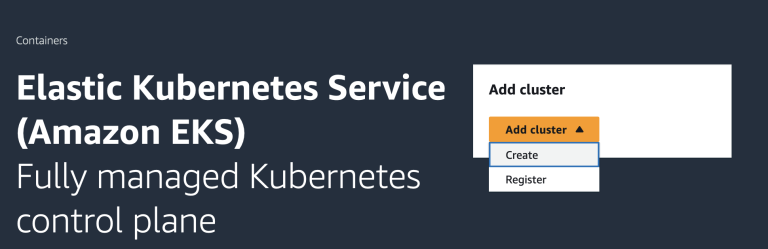

Create EKS cluster

You may create EKS clusters from both Console and Command line. For simplcity, we use command line.

Visit the AWS EKS docs for more details: https://docs.aws.amazon.com/eks/latest/userguide/what-is-eks.html

The XP operator currently does not support "AWS Fargate" (due to limitations on open file handlers). Use managed instances instead.
Instance type

A recommended instance type is m5.xlarge (or bigger).

Kubernetes version

Should be >= 1.27.9

Follow the steps below to get a basic EKS cluster up and running:

  1. Create an access key, and configure the aws CLI as described here: https://docs.aws.amazon.com/eks/latest/userguide/install-awscli.html

  2. Make a cluster configuration Yaml file

    cluster-config.yaml
    apiVersion: eksctl.io/v1alpha5
kind: ClusterConfig

metadata:
  name: enonic
  region: eu-north-1

managedNodeGroups:
  - name: eks-mng
    instanceType: m5.xlarge
    desiredCapacity: 1

iam:
  withOIDC: true
  serviceAccounts:
  - metadata:
      name: aws-load-balancer-controller
      namespace: kube-system
    wellKnownPolicies:
      awsLoadBalancerController: true

addons:
  - name: aws-ebs-csi-driver
    wellKnownPolicies: # Adds an IAM service account
      ebsCSIController: true

cloudWatch:
 clusterLogging:
   enableTypes: ["*"]
   logRetentionInDays: 30
    Replace region with your preferred one

  3. and create the cluster with the following command:

    eksctl create cluster -f cluster-config.yaml
    AWS may take quite some time to provision the cluster

    Once finished, you should see something like this in your output log:

    2024-10-30 13:47:58 [✔]  EKS cluster "enonic" in "eu-north-1" region is ready
    NOTE

    For production use, you will likely also need to configure an AWS load balancer,

Connect to the cluster

  1. Create a kubeconfig file with the following command

    aws eks update-kubeconfig --region REGION --name CLUSTER_NAME

  2. Verify you can now connect to the cluster with kubectl

    kubectl get namespaces

    This should display a list of namespaces in the newly created k8s cluster. The "Age" column in the output shows how long has it been since the namespaces are created.

    NAME              STATUS   AGE
default           Active   8h
kube-node-lease   Active   8h
kube-public       Active   8h
kube-system       Active   8h

Storage classes

Next step is to list available storage classes with this command:

kubectl get storageclasses

This should display the list of storage classes provisioned by GKE cluster.

NAME   PROVISIONER             RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE
gp2    kubernetes.io/aws-ebs   Delete          WaitForFirstConsumer   false                  9h

EFS

To run XP in clustered mode, a ReadWriteMany storage class (NFS type filesystem) is required.

You may run your own NFS server, or take advantage of Amazon’s managed service for shared filesystems called Elastic File System (EFS).

To provision an EFS storage for your cluster, follow Amazons own documentation:

  1. Create an EFS

  2. Then, create a storage class with dynamic provisioning

Once this is configured properly, you may specify efs as your shared storage class when [installing the XP operator].

Install operator

You are now ready to install the XP operator and start deploying XP instances.
