Setting up Next.js
Contents
In this chapter we will create a front-end application that renders content from the Enonic CMS (the app created in the previous chapters).
Next.js at a glance
Next.js runs on top of Node.js, and provides a shrink-wrapped approach to building sites using the React framework. Next.js supports both client-side rendering and Server side rendering, as well as pre-generation of static HTML files.
Task: Create the Next.js project
Create an empty folder, go inside and run the following command:
npx degit github:enonic/starter-nextjs
starter-nextjs is based on Next.js' own introduction app, so if you’re familiar with that, you’ll recognize the structure of the files.
The template includes some boilerplate we will customize, and an npm dependency aka The Enonic Adapter (@enonic/nextjs-adapter) that facilitates and simplifies integration with Enonic.
This tutorial requires the Next.XP 6 starter, with @enonic/nextjs-adapter 6 and @enonic/page-editor 2. Check package.json before continuing: a starter using adapter 5 is not compatible with the Guillotine 9 examples in this tutorial. |
Code overview
The following file structure should now exist within your new project folder:
.env (1)
src/
proxy.ts (2)
components/ (3)
_mappings.ts
queries/
common.ts
views/
Header.tsx
Footer.tsx
PageEditorScript.tsx
phrases/ (4)
en.json
styles/ (5)
app/
layout.tsx (6)
[locale]/
layout.tsx (7)
error.tsx (8)
not-found.tsx (9)
[[...contentPath]]/
layout.tsx (10)
page.tsx (11)
api/ (12)
mappings/
route.ts
preview/
route.ts
revalidate/
route.ts
| 1 | Environment variables are placed in this file |
| 2 | Proxy: validates Content Studio preview requests (encrypted xp blob) and enables draft mode through /api/preview, rewrites URLs without a locale prefix to the internal default-locale route and redirects /<default locale>/… to /… |
| 3 | Your implementation of CMS components: the component mappings (_mappings.ts), the common query and ready-made views (header, footer and the page editor script) |
| 4 | Phrase files for multi-language support |
| 5 | Global styles for the site |
| 6 | Root layout required by Next.js |
| 7 | Locale layout: renders <html> and <body>, sets the locale used for static texts and the page metadata |
| 8 | Error page handler |
| 9 | Not found page handler |
| 10 | Content layout: fetches the content and wraps every page with the locale context, the static content wrapper and the draft mode indicator |
| 11 | The main rendering file, catching all requests satisfying the pattern /[locale]/[[…contentPath]] |
| 12 | Folder containing API routes |
Task: Configure application
By default, the configuration should work for your setup, but verify it to be sure.
The following configuration values should match your environment:
# Provide a unique value which will be used to secure the preview mode
ENONIC_API_TOKEN=mySecretKey
# Enonic app name, must match the name of your app
ENONIC_APP_NAME=tutorial.nxp
# Enonic XP projects configuration for different locales
ENONIC_MAPPINGS=en:intro/hmdb (1)
# Absolute URL to the Enonic XP API root
ENONIC_API=http://localhost:8080/api (2)
# Guillotine API descriptor, appended to ENONIC_API
#GUILLOTINE_API=com.enonic.app.guillotine:graphql (3)
# Absolute URL to the media API, only needed if media is served from another host (e.g. a CDN)
#ENONIC_MEDIA_CDN=http://localhost:8080/api (4)
# Absolute URL to Enonic admin, only needed if it differs from the API origin (used for CORS)
#ENONIC_ADMIN=http://localhost:8080 (5)
| 1 | Mapping an XP project (intro) and site (/hmdb) to the Next.js router. |
| 2 | Root of the Enonic API. The Guillotine endpoint is ENONIC_API + / + GUILLOTINE_API. |
| 3 | Optional. Guillotine API location. Defaults to com.enonic.app.guillotine:graphql. |
| 4 | Optional. Base URL for images and attachments. Defaults to ENONIC_API. |
| 5 | Optional. Origin of the Enonic admin UI, used for CORS. Defaults to the origin of ENONIC_API. |
| These configuration values can be overridden later when deploying your app to a live server. |
Task: Boot the server
Let’s fire up the Next.js server and see if things are working as planned…
| Make sure Enonic XP and the Movie DB app are running on localhost:8080 before you continue |
Start Next.js in dev mode by running the following commands from within your Next.js project folder:
npm install npm run dev
If Next boots without errors, point your browser to http://localhost:3000 to see the glorious result.
Page:
{
"type": "page",
"path": "/"
}
Common:
{
"get": {
"displayName": "HMDB",
"_id": "3584c396-25cb-497e-b1f4-dc2bf0de4b5a",
"type": "portal:site",
"dataAsJson": {
"description": null
},
"xAsJson": {}
},
"getSite": {
"displayName": "HMDB",
"_path": "/hmdb"
}
}
The _id values differ from installation to installation. |
|
Running Next in For more details on booting Next, check out the Next.js CLI docs. |
Next URL patterns

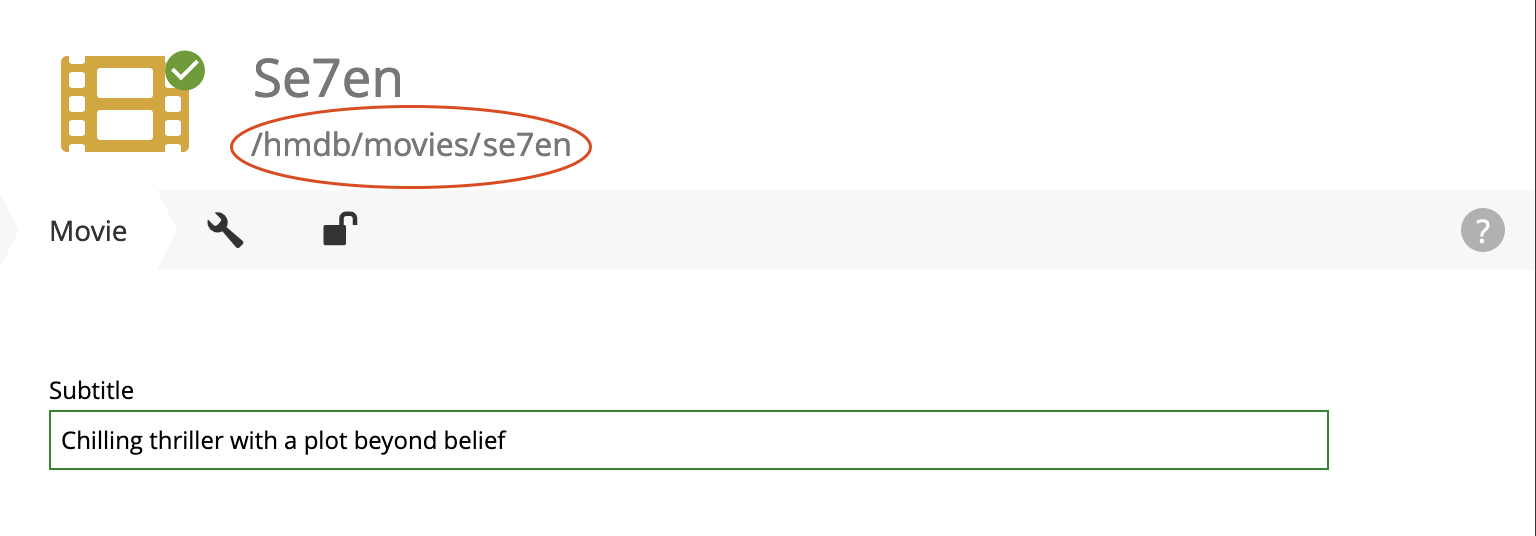

The URL structure of your front-end will mirror the structure of the content in the CMS. http://localhost:3000 will be mounted to the site root, which in our case has the internal path /hmdb.
Using the Movie s7ven as an example:
Page:
{
"type": "page",
"path": "/"
}
Common:
{
"get": {
"displayName": "S7ven",
"_id": "1cb3dbf4-31d1-4e8a-816a-8cf891de7ad6",
"type": "tutorial.nxp:movie",
"dataAsJson": {
"trailer": "https://youtu.be/znmZoVkCjpI",
"cast": [
{
"actor": "6414dc62-a3a1-4772-961f-06cb85b1bbb7",
"character": "Somerset"
},
{
"actor": "3a7b833f-3c37-4d55-88ae-cea21c556c68",
"character": "Mills"
}
],
"website": null,
"release": "1995-09-22",
"subtitle": "Chilling thriller with a plot beyond belief",
"abstract": "Two detectives, a rookie and a veteran, hunt a serial killer who uses the seven deadly sins as his motives.",
"photos": [
"6ca58af1-6810-4fae-b51b-f70e01fc4c17",
"5cb115db-eb1c-4314-8376-2cb711dea5bd"
]
},
"xAsJson": {
"tutorial-nxp": {
"SoMe": {
"twitter": null,
"imdb": "https://www.imdb.com/title/tt0114369/",
"instagram": null
}
}
}
},
"getSite": {
"displayName": "HMDB",
"_path": "/hmdb"
}
}
/hmdb/movies/s7ven

Task: Visit some more pages
Give the default rendering a spin by trying out some other URLs, for example:
…etc.
That’s it for the basic Next.js setup.
Next, we’ll have a closer look at how to customize the rendering.
