Query examples

Contents

This section provides a set of example queries.

Queries

The API lets you perform advanced queries thanks to Enonic XP’s NoSQL storage. This includes ranked search, filters, stemming, aggregations and highlighting to mention a few things.

Query example: Simple query to fetch blog posts from the app "com.enonic.app.myapp". For each post, return its display name and the display name of the referenced author
{
  guillotine {
    query(contentTypes:"com.enonic.app.myapp:post") {
      displayName
      ... on com_enonic_app_myapp_Post {
        data {
          author {
            displayName
          }
        }
      }
    }
  }
}

Follow references

References between content items are available via regular GraphQL fields, allowing you to traverse and extract details from referenced content.

By default, each items has the following common reference fields:

  • parent: the parent content item

  • children: the child item(s) if any

Schemas with ContentSelector, MediaSelector or ImageSelector will generate references to the target item(s).

Query example: Retrieve the display name of a specific content and the display name of its direct children
{
  guillotine {
    get(key: "/path/to/item") {
      displayName
      children {
        displayName
      }
    }
  }
}

Accessing images

Enonic XP can serve custom scaled images at runtime. Guillotine uses this functionality by using the "imageUrl" field which will generate a URL for the desired image size and crop.

Example: Scaled Image URL - Retrieve the image contents and generate absolute URLs to these images cropped to 800x200px
{
  guillotine {
    query(contentTypes:"media:image") {
      displayName
      ... on media_Image {
        imageUrl(scale:"block(800,200)",type:absolute)
      }
    }
  }
}

Rich text

Rich text fields provide configuration parameters that give you control over output from links, images and much more.

Example: Process HTML - Retrieve the blog posts. For each post, return its author display name, tags and processed content.
{
  guillotine {
    query(contentTypes:"com.enonic.app.myapp:post") {
      ... on com_enonic_app_myapp_Post {
        data {
          author {
            displayName
          }
          tags
          post(processHtml:{type:absolute}) {
             processedHtml
          }
        }
      }
    }
  }
}

Rich text fields will typically include links, images and macros in the processedHtml field of the RichText type. Below are further details how how to handle this:

By default, all internal links to media or content will be replaced by an absolute (server) link relative to the context of your endpoint.

For each a tag a data-link-ref attribute with referenced content Id will be added. Additional content related to the links field is available for custom processing by your client.

For instance, the processed value of a link looks like below:

<p>
    <a title="Tooltip"
        href="/admin/site/preview/hmdb/draft/hmdb/persons/lea-seydoux"
        data-link-ref="e72f48b6-a972-4133-a300-a3ab5d132800">Link 1</a>
</p>

The GraphQL query below will process links inside the field:

query {
  guillotine {
    get(key: "contentID") {
      ... on com_app_example_ContentType {
        data {
          htmlAreaField {
            links {
              ref          (1)
              uri          (2)
              media {      (3)
                content {
                 _id
                }
                intent     (4)
              }
              content {    (5)
                _id
              }
            }
          }
        }
      }
    }
  }
}
1 Reference to link in the processedHtml field
2 Link URI
3 Related media content. This field has null value for non-media content
4 Link intent. Available values download and inline
5 Related content. This field has null value for media content

Images

Guillotine by default provides image processing in the processedHtml field of the RichText GraphQL type. All internal links to resources will be replaced by an absolute (server) link and for each img tag a data-image-ref attribute with referenced content Id will be added. Using that reference you will be able to find image details in the images field and to do custom image processing if needed.

For instance, the processed value of an image looks like below:

<figure class="editor-align-justify">
    <img alt="Alt text"
         src="/site/repo/branch/appName/_/image/contentID/width-768/imageName.jpg"
         data-image-ref="4f2439ff-ecef-4470-a4b4-d8929bce6ee2" />
    <figcaption>Caption text</figcaption>
</figure>

The query below will process images inside the field:

query {
  guillotine {
    get(key: "contentID") {
      ... on com_app_example_ContentType {
        data {
          richTextField {
            images {
              ref                           (1)
              image {                       (2)
                ... imageFragment
              }
              style {                       (3)
                name
                aspectRatio
                filter
              }
            }
          }
        }
      }
    }
  }
}

fragment imageFragment on Content {
  _id
  type
  ... on media_Image {
    data {
      caption
    }
  }
  ... on media_Vector {
    data {
      caption
    }
  }
}
1 Reference to an image in the processedHtml field
2 Image as Content type
3 Image style as ImageStyle type

Using the processHtml argument which has ProcessHtmlInput type for a form item of type HtmlArea or for TextComponent field you can specify imageWidths to generate relevant links for specific widths of an image. In this case srcset attribute will be added to img tags.

For instance, when using the following fragment of query:

htmlAreaField(processHtml: { imageWidths: [600, 992] }){
    processedHtml
    images {
      ref
    }
}

The result will look as follows:

<figure class="editor-align-justify">
    <img alt="Alt text"
         src="/site/repo/branch/appName/_/image/contentID/width-768/imageName.jpg"
         data-image-ref="4f2439ff-ecef-4470-a4b4-d8929bce6ee2"
         srcset="/site/repo/branch/appName/_/image/contentID/width-600/imageName.jpg 600w,
                 /site/repo/branch/appName/_/image/contentID/width-992/imageName.jpg 992w"/>
    <figcaption>Caption text</figcaption>
</figure>

Macros

Each macro will be translated to an editor-macro tag with data-macro-ref and data-macro-name attributes in the processedHtml field value. Using these references you will be able to find details of a specific macro in the macrosAsJson or macros fields and perform custom macro processing if needed.

Guillotine processes macros which have a descriptor and built-in macros called disable and embed, otherwise processing will be skipped. More details about macros.

For instance, we have an input form item called description of HtmlArea type which contains the embed macro as shown below:

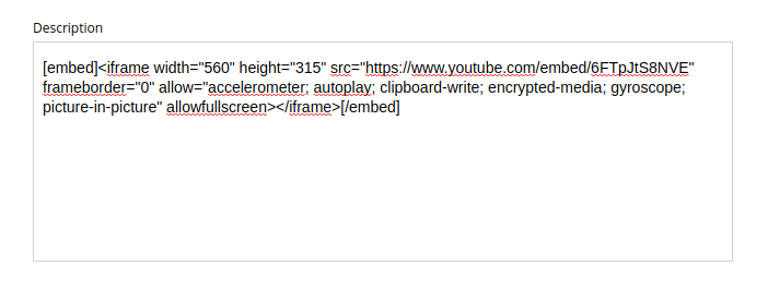

Embed Macro

The query below will fetch data for the description field:

query {
  guillotine {
    get(key: "contentID") {
      ... on com_app_example_ContentType {
        data {
          description {
            raw            // (1)
            processedHtml  // (2)
            macrosAsJson   // (3)
            macros {       // (4)
              ref
              name
              descriptor
              config {
                embed {
                  body
                }
              }
            }
          }
        }
      }
    }
  }
}
1 Non-processed value of the description field
2 Processed value of the description field
3 Array of processed macros in JSON format. The order of macros will be the same as in the raw and processedHtml fields.
4 Macro allows to specify necessary fields. That field is an alternative for macroAsJson field

Results of the query:

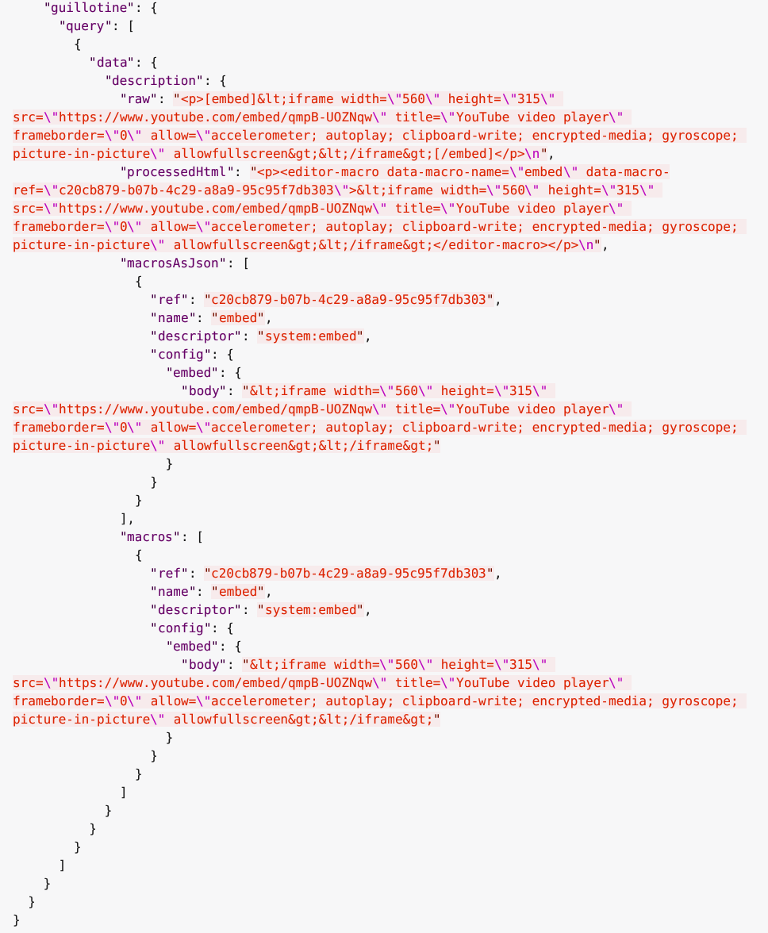

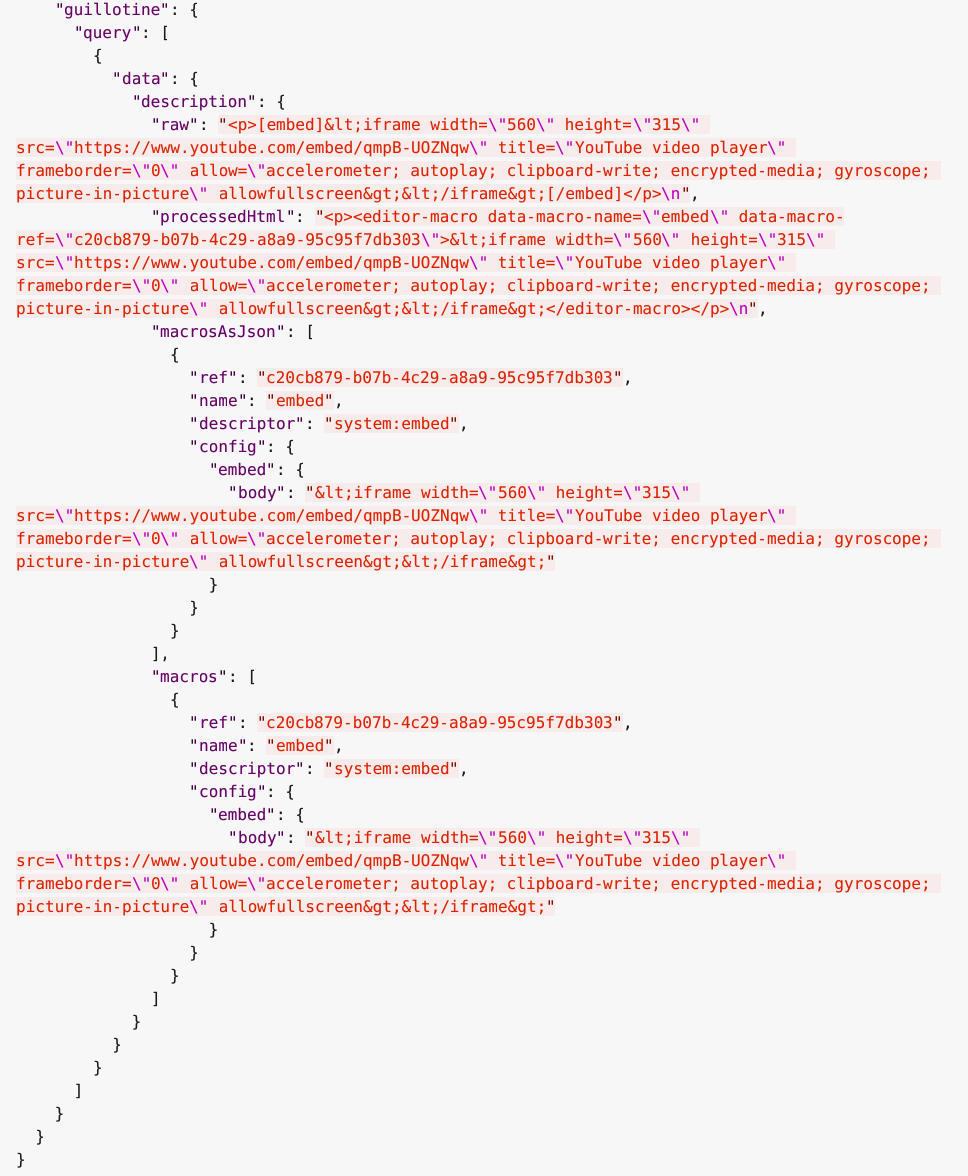

Response for embed macro

It is common to define a schema for your macro. This is located in the /site/macros/ directory. For instance, for a macro with name testmacro the schema must be placed at /site/macros/testmacro/testmacro.xml

<macro>
  <display-name>Current user</display-name>
  <description>Shows currently logged user</description>
  <form>
    <input name="defaulttext" type="TextLine">
      <label>Text to show if no user logged in</label>
    </input>
  </form>
</macro>

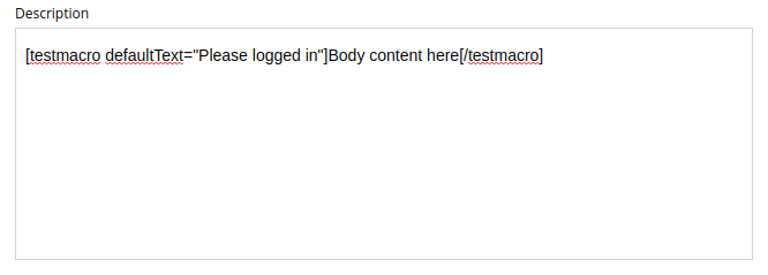

Custom Macro

Executing the query below will give your value of the defaultText input, as defined in the above schema.

query {
  guillotine {
    get(key: "contentID") {
      ... on com_app_example_ContentType {
        data {
          description {
            macros {
              ref
              name
              descriptor
              config {
                testmacro {
                  defaultText
                }
              }
            }
          }
        }
      }
    }
  }
}

xData

Enonic XP supports dynamically extending content with fields from other schemas/applications - so-called eXtra Data.

In the query below, we access the SoMe (SocialMedia) fields that have been used to extend the Person content type.

Example: Access xData fields
{
  guillotine {
    query(contentTypes:"com.example.myproject:person") {
      displayName
      x {
      	com_example_myproject {
          SoMe {
          	imdb
          }
        }
      }
    }
  }
}
Notice that xData fields are grouped by application name, this ensures there will never be a conflict between field names, even when schemas come from different applications.

Site context

When building websites, you will create root content item of type site. It is practical not having to know the exact location of the site within the project structure.

By passing a special HTTP header along the query, you get access to some useful features:

Set header

You need to specify the following HTTP header in your client:

X-Guillotine-SiteKey: IdOrPathToYourSite

Using Query playground, add the following to the HTTP headers config - remember to replace with a proper site ID:

{
  "X-Guillotine-SiteKey": "IdOrPathToYourSite"
}
SiteKey is either the ID of the site content item, or the path to the site within your project.

getSite

With the site context set, you may run queries to access the site content using getSite field

Example: Acessing the displayName of the site
{
  guillotine {
    getSite{
        displayName
    }
  }
}

Path placeholder

Use the ${site} placeholder when querying for path’s within the site.

Example: Acessing content within specific path of a site
{
  guillotine {
    getChildren(key: "${site}/persons"){
      displayName
      ... on com_example_myproject_Person {
        data {
          dateofbirth
        }
      }
    }
  }
}

Site relative paths

Finally, you may retrieve site relative paths - which may be useful when generating site relative URLs for instance.

Example: Retrive site relative item paths
{
  guillotine {
    getChildren(key: "${site}/persons"){
      displayName
      _path(type: siteRelative)
    }
  }
}
