Layouts

Contents

Layouts are essentially parts, with an extra trick up their sleve. Regions. This means that layouts may host other components, and build rich page structures.

Task: Add layout to Enonic

Adding layouts is more or less identical to pages and parts. Simply follow the steps below:

  1. Verify the Enonic app has the 2-column layout descriptor at:

    src/main/resources/cms/layouts/2-column/2-column.yaml
    kind: "Layout"
title: "2 columns"
description: "Provides left and right regions"
form: [ ]
regions:
  - "left"
  - "right"
    Just like a page, layouts may declare named regions.

    When completed, as always redeploy the Enonic app if you had to change it (happens automatically if you started enonic project dev).

Task: Add layout rendering to the front-end

Moving over to the the Next.js app. Add the component that will render the layout.

  1. Add the front-end layout component files

    src/components/layouts/TwoColumnLayout.tsx
    import type {LayoutProps} from '@enonic/nextjs-adapter';
import React from 'react'
import {RegionView} from '@enonic/nextjs-adapter/views/Region';
import styles from './TwoColumnLayout.module.css';

const TwoColumnLayout = (props: LayoutProps) => {
    const regions = props.layout.regions;
    const {common, meta} = props;

    return (
        <>
            <div className={styles.row}>
                <RegionView name="left" components={regions['left']?.components} common={common} meta={meta}/>
                <RegionView name="right" components={regions['right']?.components} common={common} meta={meta}/>
            </div>
        </>
    );
};

export default TwoColumnLayout;

    And it’s CSS module

    src/components/layouts/TwoColumnLayout.module.css
    .row {
    display: flex;
    gap: 10px;
    margin-bottom: 10px;
    flex-wrap: wrap;
}

.row :global(div) {
    flex: 1;
    min-width: 200px;
}

.row :global(.xp-page-editor-region-placeholder) {
    margin-bottom: 0;
}
    This is an example of using CSS modules. For more details visit the Next.js style documentation

  2. Register the component in _mappings.ts:

    Add these new lines to the _mappings.ts file.

    src/components/_mappings.ts
    import TwoColumnLayout from './layouts/TwoColumnLayout';


// Layout mappings
ComponentRegistry.addLayout(`${APP_NAME}:2-column`, {
    view: TwoColumnLayout
});
    this specific layout does not need any additional data - hence no query or processor:

After completing these steps, you should be able to add the layout to a page, and then add components inside the layout.

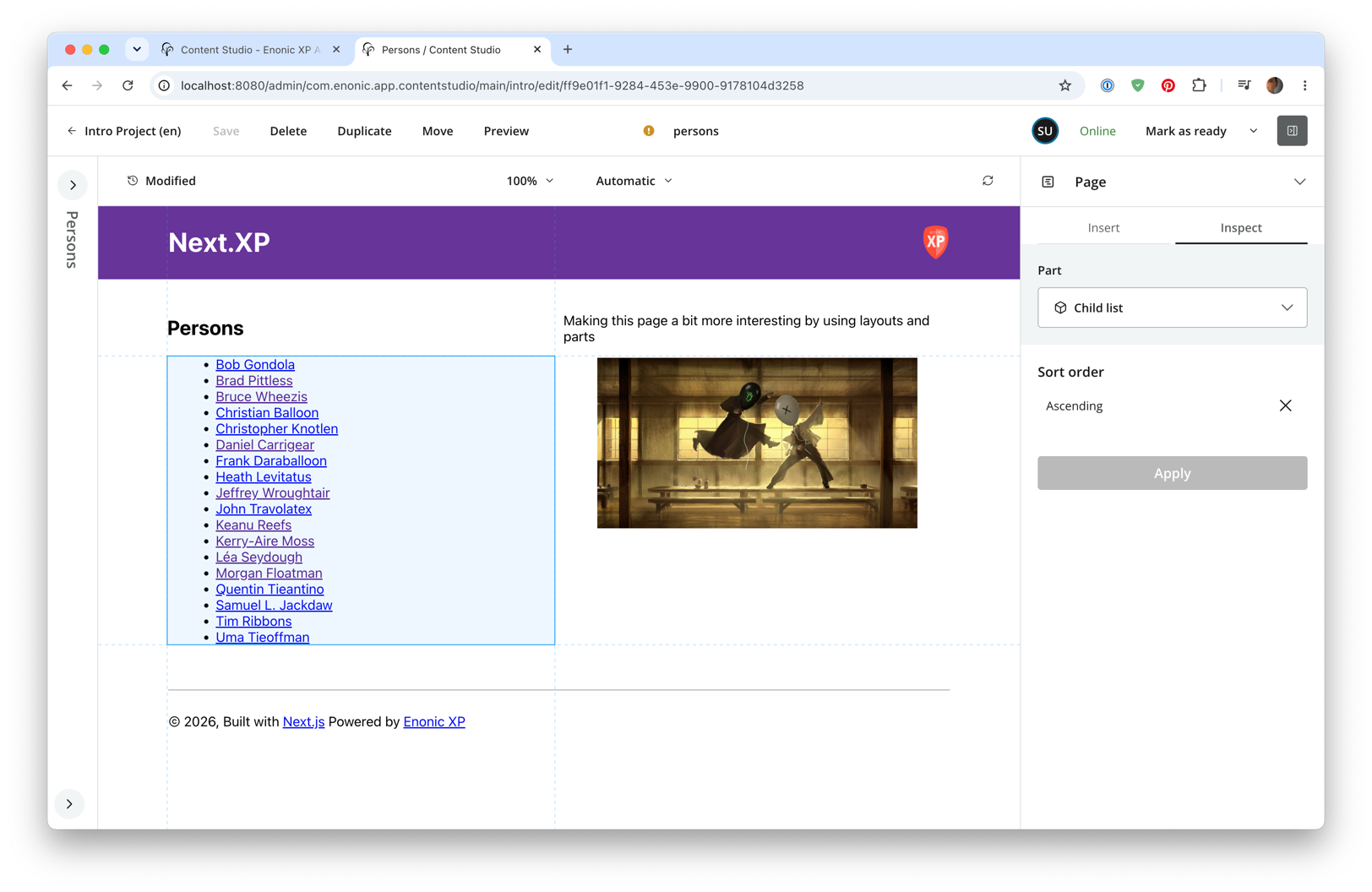

By combining layout, part and text we are starting to see the potential of the page editor:

layout part text

In the next chapter we will look into page templates. Page templates allow us to reuse a page definition across multiple content items.
