Entries

Contents

What is an entry?

React4xp is structured around entries.

It’s actually a webpack term, but in React4xp we use the word entry for a React component that can be accessed by React4xp in an XP controller. They are the only react files that React4xp can use directly.

Think of entries as "bridge elements":

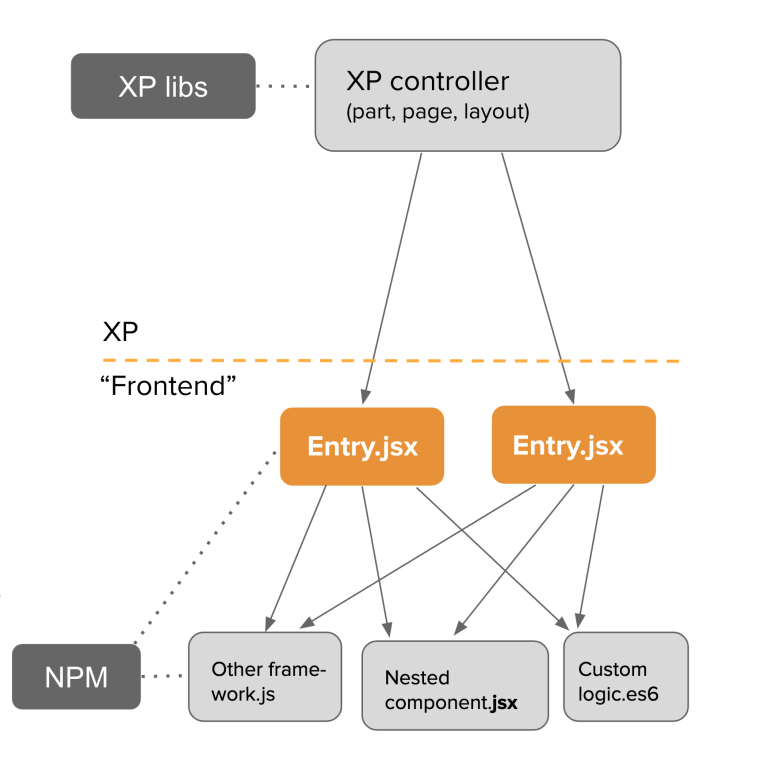

A mental model:

entries

(Here’s a cheat sheet. See also chunks, for a complete picture)

On the XP/server side, you have the controllers with their backend XP flow, logic and XP lib imports. Entries are the beginning of the frontend side (although the same code is also used for serverside-rendering): they do regular frontend-style ES6 logic and can import stuff from NPM/node_modules, your own logic, nested react components, whatever - even other entries.

How to make an entry

Entries are pretty much just standard TSX/JSX files, but they must follow two requirements (another cheat sheet):

  1. is located either in a folder either below /site/ or below one of the entryDirs folders listed in react4xp.config.js (see also jsxPath),

  2. and default-exports a function: props?⇒reactComponent - a function that may take a props argument (serializable JS object: no functions) and must return a react component.

Important:

  • There should be no call to React.render or ReactDOM.render in an entry (or a compiled entry or dependency bundle - keep an eye on your imports). React4xp will handle that call in the right context.

  • If your entry uses react hooks or it’s a react class component, read Classes and hooks in entries below.

Entries, assets and react apps

React4xp handles them in build-time and runtime: locates entries, compiles each entry into its own entry asset (under /build/resources/main/r4xAssets). React4xp’s render methods also generate page contributions that make sure these assets are served to the client.

For example, early in this tutorial we’ve seen the entries hello-react.jsx and color.jsx, they are compiled into the assets hello-react.js and color.js.

When rendered (whether it’s by using .render or a pair of renderBody/renderPageContributions in the custom flow syntax), each entry will become not only assets of their own, but independent root level react apps in the browser memory! Good to know if you display more than one entry on a page - which you can, but you might also consider using just one entry for the root, and multiple imports in it.

Classes and hooks in entries

If your entry is a react class component or a functional component that uses react hooks (and possibly other specific react features?), the default-export must be correctly wrapped.

JSX entry examples

  • Straight functional component entry: straight export is okay.

    Header.jsx
    function Header(props) {
    return <h1>{props.text}</h1>;
};

// This is fine:
export default Header;

// An extra wrapped layer would work too. But it's usually not necessary:
//
// export default (props) => <Header {...props} />;

  • Class component entry: needs a JSX-wrapped export.

    Welcome.jsx
    class Welcome extends React.Component {
  render() {
    return <p>Hello, {this.props.name}</p>;
  }
}

// Bad:
// export default Welcome;

// Good:
export default props => <Welcome {...props} />;

  • Functional component that uses hooks: needs a JSX-wrapped export.

    HookButton.jsx
    function HookButton() {
  const [count, setCount] = useState(0);

  return (
      <button onClick={() => setCount(count + 1)}>
        You clicked {count} times
      </button>
  );
}

// Bad:
// export default HookButton;

// Good:
export default props => <HookButton {...props} />;

Why?

The reason for this has to do with how the components are compiled, and that the runtime-client trigger call in the browser uses the default-export directly, in vanilla JS - so everything that’s exported from an entry must be ready and compiled for vanilla-JS usage.

In the examples above it would be equivalent to Welcome(props); and HookButton(props);. Welcome is not compiled to a function that can be called like this, and the pure HookButtons function is not really a functional component (before it’s called as a component, the way we do when it’s wrapped), just a regular JS function - so the straight export breaks the rules of hooks and you get an error.

What is the jsxPath?

Each entry is identified by its own jsxPath.

Short and brutal: the jsxPath is a name string generated from the path and filename of the compiled asset after building, relative to /build/resources/main/r4xAssets/ - without file extension.

From source file location to jsxPath

During development though, these 3 rules are probably easier:

  1. If you use portal.getComponent() to insert a component object (like entry in the first example), you can ignore the jsxPath and let the component object do the job: React4xp.render will use it to look for an entry with the same name, in the same folder, as a part/page/layout controller.

But if you need to access an entry with a particular name or from a different folder (from anywhere in the compiled JAR, actually), here’s how to find the jsxPath of an entry:

  1. If an entry’s source file is a TSX/JSX under /src/main/resources/ site/, the jsxPath is the source file’s path relative to /src/main/resources/ - unix-style and without file extension.

    • So the jsxPath will start with site/…​ etc (and the asset will be compiled into a folder below /build/resources/main/r4xAssets/ site/, and so on).

  2. Or, using the setup from the starter, you can also put your entries under src/main/resources/ react4xp/entries. Then the jsxPath (and compiled-asset path) will be relative to /entries/ instead.

    • Actually, you can control this with the entryDirs property in your local react4xp.config.js. The starter has added entryDirs:['entries'] here, but this is a comma-separated list of folder names relative to src/main/resources/react4xp/. Remember, if you add more entryDirs or replace entries, the jsxPaths will always be relative to those new entryDirs, so beware of name collisions.

    • For example: add ../myComponents to entryDirs: entryDirs:['entries','../myComponents']. Since entryDirs and ../ are relative to src/main/resources/react4xp/, the new entry source folder is src/main/resources/myComponents/. Now new TSX/JSX files can be put there, and get a jsxPath relative to that. So the entry src/main/resources/myComponents/ app/myEntry.jsx will get the jsxPath "app/myEntry", and will be compiled to this entry asset: /build/resources/main/r4xAssets/app/myEntry.js.

Overview in entries.json

If you’re ever unsure: after building, the jsxPaths of all the available entries are stored in build/resources/main/r4xAssets/entries.json.

This file is generated by webpack during build. It’s also used by the runtime, so it should not be deleted or edited!

Name, not path

JsxPaths are not actually file system paths, but static name strings. So avoid shortcuts and relative references like ../, etc.

See also: chunks.
