Developer Docs React4xp Refactored Content Type

Rendering based on Content Type

In this chapter you will create a new component that renders persons

Person content type

The Headless Movie DB contains sample content, and content types. One of these is Person or more specifically com.enonic.app.hmdb:person.

From Content Studio, you may easily find and list persons. By selecting the JSON preview, you can also study the properties of a person:

Sample JSON for Person

{
    "_id": "a8b374a2-c532-45eb-9aa1-73d1c37cd681",
    "_name": "lea-seydoux",
    "_path": "/hmdb/persons/lea-seydoux",
    "creator": "user:system:su",
    "modifier": "user:system:su",
    "createdTime": "2021-11-23T10:01:16.711Z",
    "modifiedTime": "2021-11-23T13:06:38.493Z",
    "owner": "user:system:su",
    "type": "com.enonic.app.hmdb:person",
    "displayName": "Léa Seydoux",
    "hasChildren": true,
    "language": "en",
    "valid": true,
    "childOrder": "modifiedtime DESC",
    "data": {
        "photos": "09b3af0e-6da3-4bcf-88d9-11cbe9c41283",
        "bio": "French actress Léa Seydoux was born in 1985 in Paris, France, to Valérie Schlumberger, a philanthropist, and Henri Seydoux, a businessman.",
        "dateofbirth": "1985-07-01"
    },
    "x": {},
    "page": {},
    "attachments": {},
    "publish": {
        "from": "2024-11-13T13:32:39.427Z",
        "first": "2024-11-13T13:32:39.427Z"
    },
    "workflow": {
        "state": "READY",
        "checks": {}
    }
}

The Person component

To implement the rendering we need to create a new component, and accompanying data processor:

Create a processor:

/src/main/resources/react4xp/components/content/PersonProcessor.ts

import {get as getContentByKey} from '/lib/xp/content';
import {imageUrl} from '/lib/xp/portal';
import {toArray} from "/react4xp/utils/arrayUtils";
import {PageDescriptor} from '@enonic-types/core';
import type {Content} from '@enonic-types/lib-content';
import type {ComponentProcessorFunction} from '@enonic-types/lib-react4xp/DataFetcher';

function fetchAdditionalPhotos(photosIds) {
    return photosIds.map(photoId => {
        if (photoId) {
            const photoContent = getContentByKey<Content>({key: photoId});
            return {
                _id: photoContent._id,
                title: photoContent.displayName,
                imageUrl: imageUrl({id: photoContent._id, scale: 'block(175, 175)'})
            };
        }
    });
}

export const personProcessor: ComponentProcessorFunction<PageDescriptor>
    = (params) => {
    const photos: string[] = toArray<string>(params.content.data.photos as string | string[])
    const firstPhotoId = photos[0] || '';
    const remainingPhotoIds = photos.slice(1);

    let firstPhoto = null;
    if (firstPhotoId) {
        const {_id, displayName} = getContentByKey<Content>({key: firstPhotoId});
        firstPhoto = {
            _id,
            title: displayName,
            imageUrl: imageUrl({id: _id, scale: 'block(1200, 675)'})
        }
    }

    const extraPhotos = fetchAdditionalPhotos(remainingPhotoIds);

    return {
        displayName: `${params.content.displayName}`,
        photo: firstPhoto,
        birthDate: params.content.data.dateofbirth,
        restPhotos: extraPhotos
    };
};

Add it to the dataFetcher, with the following two lines:

dataFetcher

import {personProcessor} from './components/content/PersonProcessor';

dataFetcher.addContentType('com.enonic.app.hmdb:person', {processor: personProcessor});

Create the Person component, it consists of two files:

/src/main/resources/react4xp/components/content/Person.tsx (React component)

import React from 'react'
import styles from './Person.module.css';

export const Person = (props) => {
    const {displayName, photo, restPhotos, bioHtml, birthDate} = props as any;
    return (
        <div className={styles.person}>
            <h1>{displayName}</h1>
            <p>{birthDate}</p>
            <div>
                {
                    photo ? (
                        <>
                            <div className={styles.photos}>
                                <img src={photo.imageUrl}
                                     title={photo.title}
                                     alt={photo.title}
                                     height={675}
                                     width={1200}
                                     loading="eager"
                                />
                            </div>
                        </>
                    ) : (
                        <p>No photo available</p>
                    )
                }
                {restPhotos && restPhotos.length > 0 && (
                    <>
                        <h2>Photos</h2>
                        <div className={styles.photoContainer}>
                            <div className={styles.photoGrid}>
                                <div className={styles.photoScroll}>
                                    {restPhotos.map((photo, index) => (
                                        <img key={index}
                                             src={photo.imageUrl}
                                             title={photo.title}
                                             alt={photo.title}
                                             height={175}
                                             width={175}
                                        />
                                    ))}
                                </div>
                            </div>
                        </div>
                    </>
                )}
            </div>
        </div>
    )
}

/src/main/resources/react4xp/components/content/Person.module.css (CSS module)

.person .bio {
  font-family: sans-serif;
}

.person {
  display: flex;
  flex-direction: column;
  margin-inline: auto;
  min-height: 1600px;
}

.person h1 {
  margin-bottom: 0;
}

.person p {
  margin-top: 0;
}

.flexBlock {
  display: flex;
  justify-content: space-between;
}

.photoContainer {
  position: relative;
  display: flex;

  ::-webkit-scrollbar {
    -webkit-appearance: none;
    height: 6px;
  }

  ::-webkit-scrollbar-thumb {
    border-radius: 8px;
    background-color: ghostwhite;
  }
}

.photoGrid {
  overflow-x: auto;
}

.photoScroll {
  display: flex;
  gap: 25px;
  white-space: nowrap;
  padding: 0;
  margin: .5rem 0 .5rem 0;
}

.photoScroll img {
  border-radius: 5px;
}

.photos {
  margin-block: 1rem;
  grid-template-columns: repeat(auto-fit, minmax(200px, 1fr));
  grid-gap: 50px;
  gap: 50px;
}

.restPhotosContainer {
  padding: 1rem 0;
  max-width: calc(90vw - 1rem);
}

.restPhotos {
  display: grid;
  grid-template-columns: repeat(auto-fill, minmax(15%, 1fr));
  gap: 5%;
  margin-block: 1rem;
}

.photos img {
  width: 100%;
  height: auto;
  border-radius: 8px;
}

.restImg {
  width: 100%;
  aspect-ratio: 1 / 1;
  object-fit: cover;
  object-position: 50% 50%;
  border-radius: 5px;
}


.richText {
  font-size: 24px;
}


.richText figure img {
  border-radius: 5px;
}

.photosHeader {
  margin-top: 0;
  color: #EF82F0;
}

Plaec it in the component to the registry: by adding the following two lines:

componentRegistry

import {Person} from './components/content/Person';

componentRegistry.addContentType('com.enonic.app.hmdb:person', {View: Person}); (1)

+ <1> By using addContentType() we are instructnig the componentRegistry to render this component when the content is of type 'com.enonic.app.hmdb:person'.

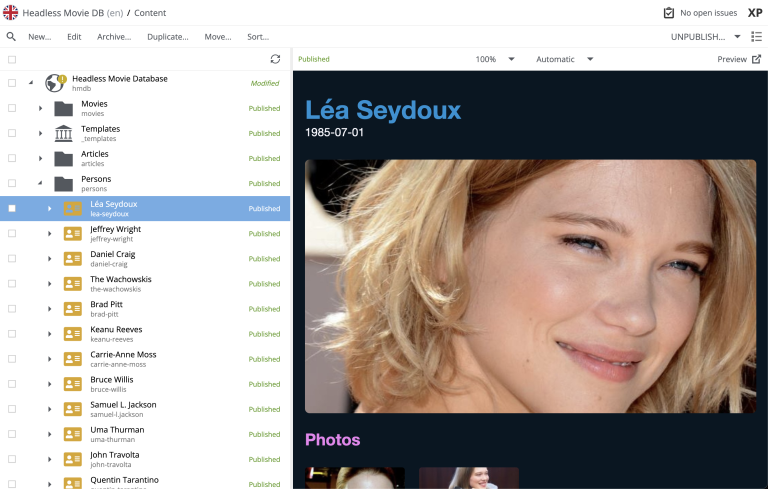

Back in Content Studio, select a random person to see what you have made:

lea seydoux

You are on a roll, next - lets have a look at Rich text handling.
