Component Types

Contents

Enonic XP has five types of components that can be added to regions on a page. These component types are listed under the Insert tab of the components widget in the Page Editor. This section covers each type of component in detail.

Part component

Part components are reusable, configurable components that can be placed into any region of a page. This allows content editors to build and customize pages without writing any code. There are no built-in part components. Each one is custom made in the application code. Parts are typically created to render custom content, lists of content, forms, etc.

The first step in adding a part component to a page is to edit the page content and open the Insert tab of the Components widget. Drag the part component placeholder (puzzle piece) to the desired location on the page. The part placeholder will now appear as a blue box with a dropdown selector. The same part dropdown selector will appear in the components widget. Use one of the selectors to find the desired part component.

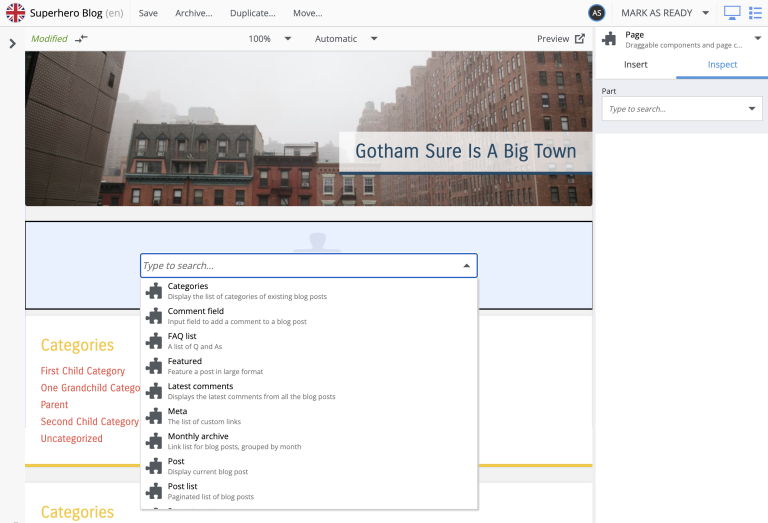

component types part edit

Once a part component is selected, the placeholder will be replaced with the actual part and the Insert tab will show the part’s configuration options in a form.

Some parts won’t have any configuration. Parts with configuration options are independently configured. This means that the same part component can be added to multiple pages, or even multiple times on the same page, and each instance can have different configuration values.

component types part insert
It’s possible to limit a part to be used only on specific content type(s).
Example of a part descriptor allowed on a site and content types (from the same application) whose names start with "article"
<part>
  <display-name>My article part</display-name>
  <form></form>
  <config>
    <allow-on-content-type>my.cool.app:my-cool-type</allow-on-content-type>
    <allow-on-content-type>${app}:article*</allow-on-content-type>
  </config>
</part>
Example of a part descriptor NOT allowed for content types that end with ":post"
<part>
  <display-name>My article part</display-name>
  <form></form>
  <config>
    <allow-on-content-type>^(?!.*[:]post$).*$</allow-on-content-type>
  </config>
</part>
Note that sites and page templates are considered content types as well (portal:site and portal:page-template respectively), so if you want to enable a part (or layout) for a specific content type(s) and still be able to use it on a site and/or template then you have to explicitly add their types to allowed content types:
<part>
  <display-name>My article part</display-name>
  <form></form>
  <config>
    <allow-on-content-type>${app}:article</allow-on-content-type>
    <allow-on-content-type>portal:site</allow-on-content-type>
    <allow-on-content-type>portal:page-template</allow-on-content-type>
  </config>
</part>

Layout component

Layout components are reusable, configurable components (similar to Part components) that can be placed into any region defined in a page component. Layouts themselves define regions where other components can be placed with the Page Editor. The primary purpose of a layout is to enable other components to be placed side-by-side. As of version 6.15, a layout cannot be placed inside another layout. There are no built-in layouts. Each one is custom made in the application code. Layouts are typically created for two or three columns and have configuration options for column widths.

In the Page Editor, drag a Layout component placeholder from the components widget to the desired region on the page. The layout placeholder will now appear as a blue box with a dropdown selector. The same dropdown selector will appear in Insert tab of the components widget. Use one of the selectors to find the desired layout component.

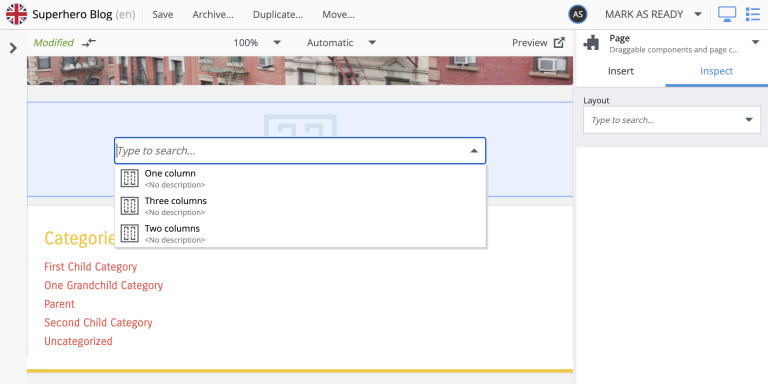

component types layout insert

Once a layout is selected, the actual layout rendering will replace the placeholder and its configuration options will appear in the components widget. Some layout components may not have any configuration options.

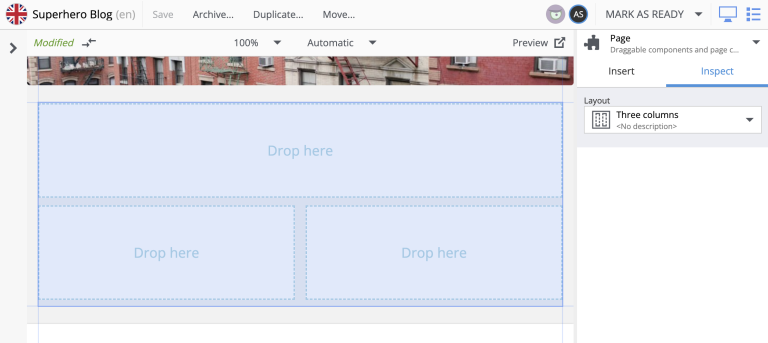

component types layout edit
While editing a page, it may be difficult to select a layout to access its configuration. In this case, the Components View can help to select the layout. Alternatively, a part within the layout can be selected and then that part’s parent can be selected from the right-click context menu. Continue selecting the parent component until the layout is the selected component.
Just as with parts, you can limit a layout to be used only on specific content type(s).
<layout>
  <display-name>My article part</display-name>
  <form></form>
  <config>
    <allow-on-content-type>portal:site</allow-on-content-type>
  </config>
</layout>

This layout will only be allowed on a site, but not for example on a page template or any of custom content types.

Text component

The Text component allows content editors to place and format text into any region on a page without writing any code. Images, videos, and links can also be added inside text components. Macros allow YouTube videos, embedded code, and no-format text to be added as well. The formatting and macro options are the same as those for the HtmlArea inputs that can be found in content types and other configuration forms in the Content Studio. The only difference is that the formatting toolbar is at the top of the page for text components.

In the Page Editor, drag a Text component from the Insert tab of the components widget to the desired region on the page. A cursor will appear inside the text component and editing can begin. If another component is selected, the text component will need to be double-clicked to resume editing.

Documentation on Rich Text Editor used by Text component can be found here

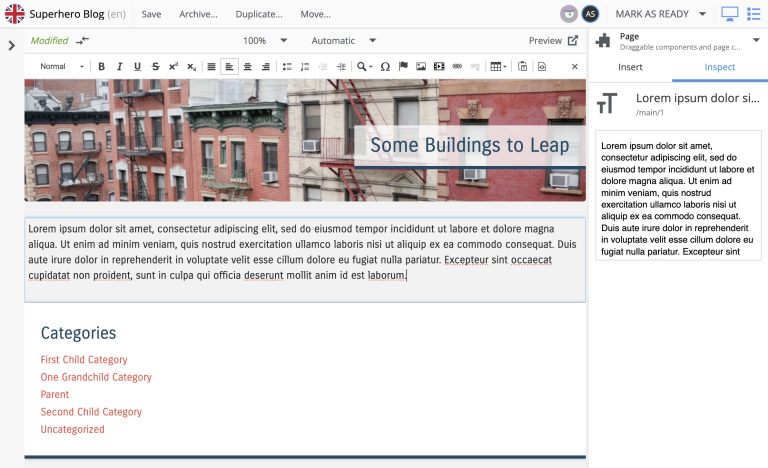

component types text insert

Fragment component

Fragments are created as content from an instance of another component. What makes a fragment special is that it uses the same configuration on every page where it’s added. When a fragment content is altered, the change is instantly visible on every page that uses it. All of the other components are independently configured.

Creating fragments

Fragments can be created from any component on a page. When a fragment is created, it makes a content copy of the part, layout, image or text component. In the page editor, right-click the desired component and select “Create fragment” from the context menu. The new fragment content is created as a child of the page being edited. The fragment content will open in a new editor tab where its name and configuration can be changed. At the same time, the component that was copied is replaced with the new fragment.

Using fragments

Once a fragment content has been created, it can be added to pages with the page editor. Drag a fragment placeholder from the Insert tab of the components widget to the desired location on the page. Use the dropdown selector in the placeholder to find the desired fragment content. Once selected, the fragment will appear.

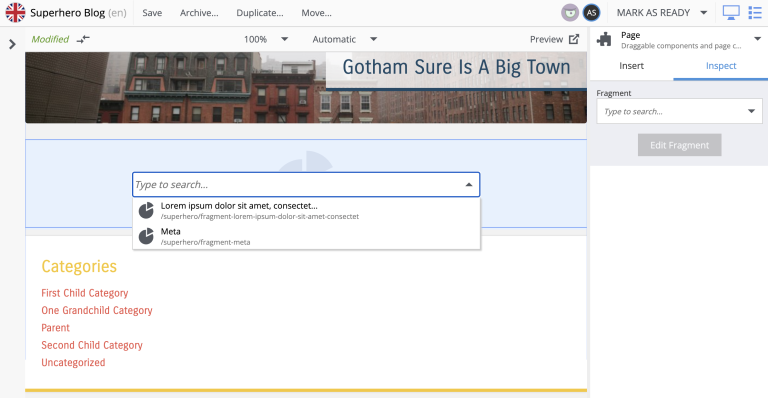

component types fragment insert
