CheckBox form item

Contents

A checkbox field has a value if it is checked, or no value if it is not checked. Therefore, the only values for occurrences that makes sense is a minimum of zero and a maximum of one, which is default and may be skipped.

Appearance

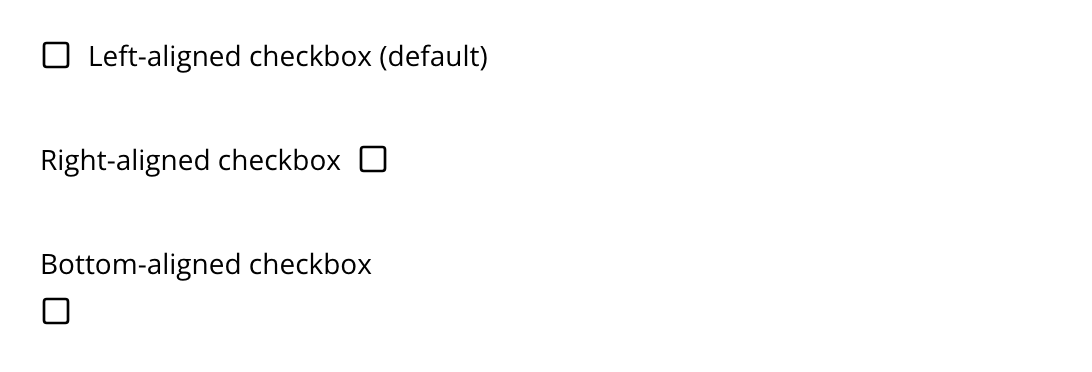

The below screenshot shows four variants of how a checkbox can be presented, based on use of alignment.

variants of checkboxes

Usage

Sample definition with a default checked, right aligned checkbox.

- type: "CheckBox"
  name: "my_checkbox"
  label: "My Checkbox"
  default: "checked"  (1)
  alignment: "right"  (2)
1 default - Use checked to check it, default is unchecked.
2 alignment defines placement of checkbox relative to label text. Supported values are: "left", "right", "top", "bottom", default is "left".

Output

Value type: Boolean — not included in _alltext

Checked
{
  "my_checkbox": true
}
When the checkbox is unchecked, the property is omitted from the output entirely.
