RadioButton input type
Contents

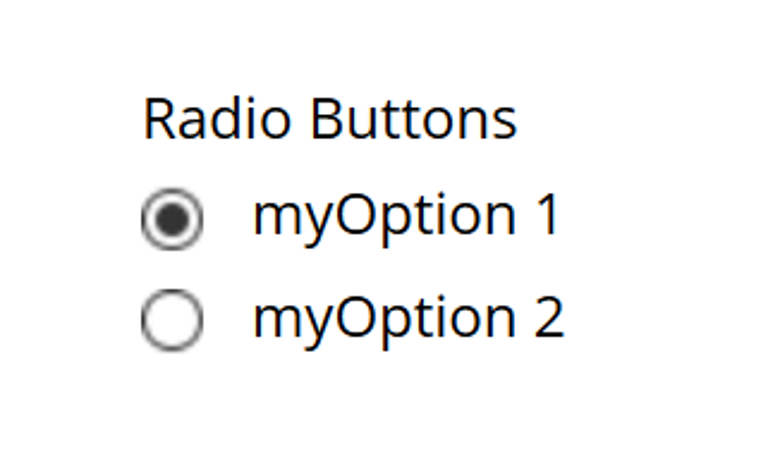

An input type for selecting one of the available options defined in the config element.
Usage
- type: "RadioButton"
name: "my_radiobutton"
label: "My RadioButton"
occurrences:
min: 1
max: 1 (1)
options: (2)
- value: "one"
label:
text: "Option One"
i18n: "option_one.label"
- value: "two"
label:
text: "Option Two"
i18n: "option_two.label"
default: "one" (3)| 1 | occurrences only make supports minimum=1 or 0 - maximum will always be 1. |
| 2 | options define the available choices. The value is stored when the option is selected. Multiple options are allowed and ordered. Option labels support localization via the text/i18n object pattern. |
| 3 | default is optional, and may be equal to one of the option values. |
Output
Value type: String — not included in _alltext
The stored value is the value attribute of the selected option. Only one value can be selected.
{
"my_radiobutton": "one"
}The stored value corresponds to the value attribute, not the display label. |
