Image component

Contents

Advanced component for inserting and managing images in rich text.

Introduction

The HtmlArea’s built-in image function embeds a managed image in rich text. Unlike a plain <img>, it references an image content item by ID, may include a caption, and can apply a custom image style — cropping and filters are handled server-side, and the URL is resolved at render time.

Appearance

In Content Studio, the HtmlArea editor provides a standard image dialog that allows editors to insert images and control the basic styling.

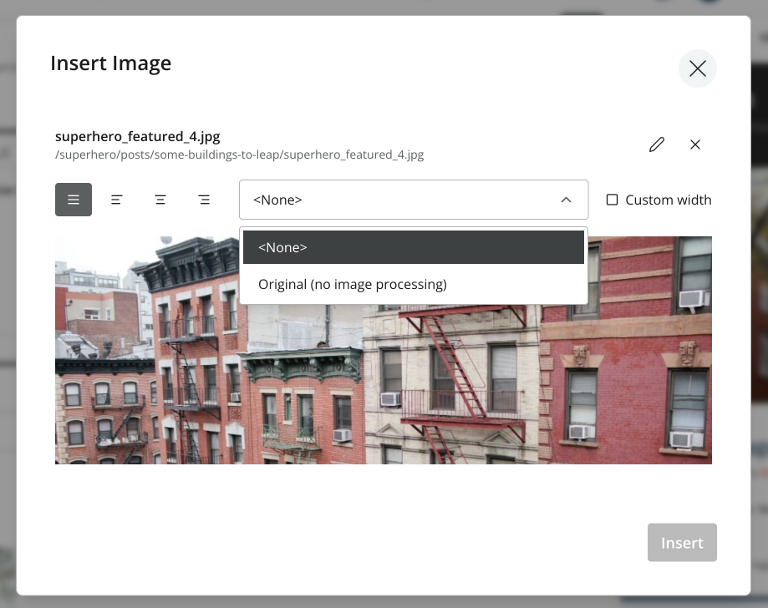

Image dialog with all available options where the style dropdown is opened
Figure 1. The image dialog is available from the editor toolbar

Raw format

The inserted image is stored as a <figure> element wrapping an <img> that references the image by ID, optionally with a <figcaption> caption and a style class:

<figure class="editor-style editor-image-cinema">
  <img alt="Mountain at dawn" src="image://a1b2c3d4-e5f6-7890-abcd-ef1234567890"/>
  <figcaption>Sunrise over the summit</figcaption>
</figure>

  • image://<id> references an image content item — not a file URL — and must be resolved before rendering.

  • The optional <figcaption> holds the caption.

  • The class (e.g. editor-image-cinema) identifies a custom image style that controls server-side crop/filters and editor CSS.

Processed Format

By using Guillotine’s processedHtml, image elements will automatically be tagged with reference attributes. Additionally, the HtmlArea type also exposes a typed images field returning detailed data about the referenced image content, so a front-end can build its own markup instead of parsing the processed HTML:

The processHtml argument is applied on the field itself. type controls the URL form (absolute or server-relative), and imageWidths lists the widths used to generate the srcset.

{
  guillotine {
    get(key: "/articles/hello") {
      ... on com_example_myapp_Article {
        data {
          body(processHtml: {type: absolute, imageWidths: [600, 992]}) {
            processedHtml
            images {
              ref  (1)
              image {
                _id
                displayName
              }
              style {
                name
                aspectRatio
                filter
              }
            }
          }
        }
      }
    }
  }
}
1 Matches the data-image-ref attribute in processedHtml, so a front-end can map each image tag to its data.
Response
{
  "data": {
    "guillotine": {
      "get": {
        "data": {
          "body": {
            "processedHtml": "<figure class=\"editor-style editor-image-cinema\"><img src=\"https://example.com/api/media:image/my-project/a1b2c3d4-...:<fingerprint>/width-768/photo.jpg\" data-image-ref=\"a1b2c3d4-e5f6-7890-abcd-ef1234567890\" srcset=\"https://example.com/api/media:image/my-project/a1b2c3d4-...:<fingerprint>/width-600/photo.jpg 600w, https://example.com/api/media:image/my-project/a1b2c3d4-...:<fingerprint>/width-992/photo.jpg 992w\"/><figcaption>Sunrise over the summit</figcaption></figure>",
            "images": [
              {
                "ref": "a1b2c3d4-e5f6-7890-abcd-ef1234567890",
                "image": {
                  "_id": "a1b2c3d4-e5f6-7890-abcd-ef1234567890",
                  "displayName": "Mountain at dawn"
                },
                "style": {
                  "name": "editor-image-cinema",
                  "aspectRatio": "21:9",
                  "filter": null
                }
              }
            ]
          }
        }
      }
    }
  }
}

In the processed HTML the image:// reference is rewritten to an Image API <img> tagged with a data-image-ref attribute and a srcset generated from imageWidths; the <figure>, <figcaption> and style class are preserved. The typed images array carries the same ref (so a front-end can correlate each tag with its data), plus the resolved image content and the applied style.

Rendering

A front-end consumes processedHtml together with the typed images data, correlating each data-image-ref tag with its ref to render images its own way (for example a responsive <picture> or a design-system component). Enonic’s front-end toolkits handle this mapping for you — see Front-end integration and the React SPA tutorial for worked examples.
