Developer Docs Xp Next Cms Pages Parts

Part components

Contents

Part components are similar to layout and page components, but do not support regions.

Introduction

Parts are leaf-nodes in the component structure. Parts are typically used in combination with forms, and have a vast range of application areas.

Usage

Like pages and layouts, parts needs a descriptor. Place the descriptor in your project as follows: src/main/resources/site/parts/<part-name>/<part-name>.xml`.

Each part may also declare a form using the schema system. The form data will be stored together with each component instance.

Example part descriptor
<part>
  <display-name>Content List</display-name>
  <form />
</part>

Custom icon

XP 7.2.0

Parts support the definition of custom icon. The icon replaces the standard part icon when working in Content Studio. Simply place an icon (in either PNG or SVG format) in the part folder.

For example, if folder/part is called mypart then part descriptor is called mypart.xml and the icon file should be called either mypart.svg or mypart.png. In the screenshots below parts "HTML Area Example" and "Image filters test" are using custom icons.

Below are examples of what custom icons may look like in Content Studio.

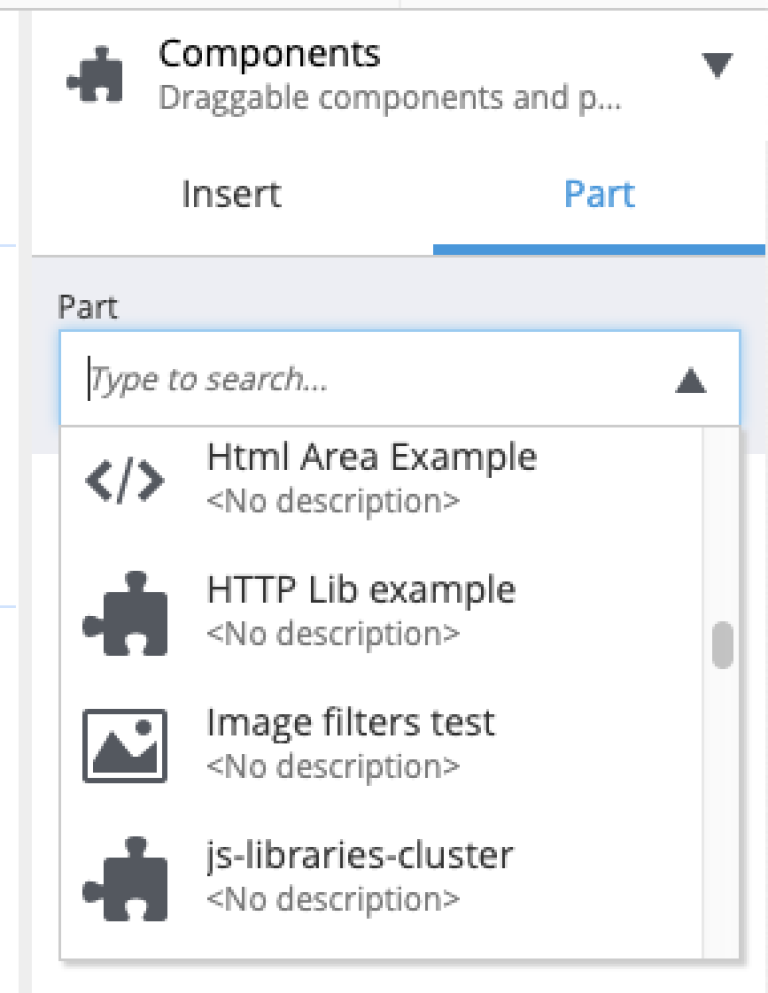

Custom icon as seen in the part selector

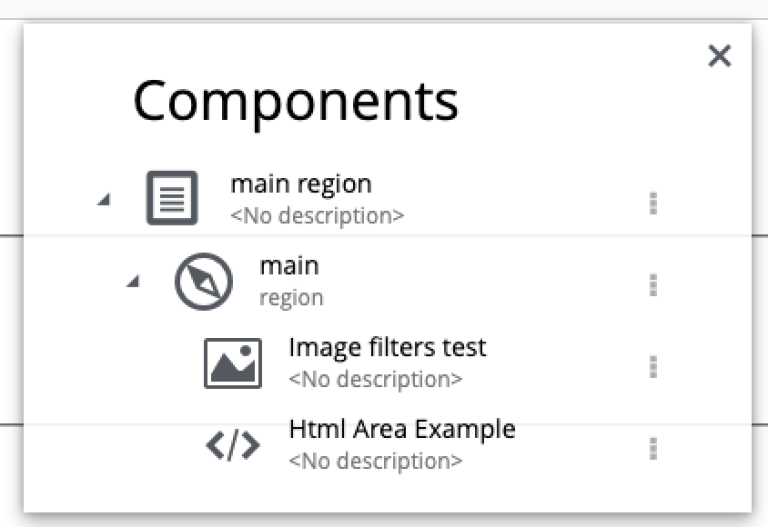

Custom icons in the page components tree

Rendering

Parts can be rendered using your favorite front-end framework.

Visit the component rendering section for details on rendering parts with the Enonic Framework.
