GeoPoint input type

Contents

Stores a GPS coordinate as two comma-separated decimal numbers.

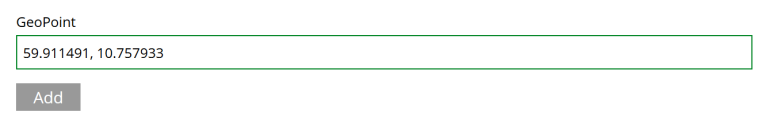

Appearance

text input with a longitude and latitude numbers

  • The first number must be between -90 and 90, where a negative number indicates a location south of equator and a positive is north of the equator.

  • The second number must be between -180 and 180, where a negative number indicates a location in the western hemisphere and a positive number is a location in the eastern hemisphere.

Usage

<input name="mygeopoint" type="GeoPoint">
  <label>My GeoPoint</label>
  <occurrences minimum="0" maximum="1"/>
  <default>51.5,-0.1</default> (1)
</input>
1 default specifies a default string value for the GeoPoint, for example 51.5,-0.1.
