Image service
Contents
The image service enables real-time processing and delivery of rasterized RGB/RGBa image media via the :8080/site/<repo>/<branch>/<path-to-page>/_/image/ endpoint
Image URL
An image URL consists of the following components:
Endpoint, followed by a forward slash.
Format::8080/site/<repo>/<branch>/<path-to-page>/_/image/
On a live site behind virtualhost, everything before the path is typically hidden.Content key, followed by a colon.
Example:c82262a6-77d6-4276-b0e7-fe82f4eb57b8:Content version key, followed by a forward slash.
Example:1feb57ed672f8c3b9fd6d4614878dafd9882298b/Scaling (method followed by arguments, separated by dashes), followed by a forward slash.
Example:block-300-100/File name equal to content name.
Example:.jpgURL parameters, such as background or filter (URI encoded, filter values are semicolon-separated)
Example:?background=0x777777&filter=sharpen%28%29%3Brounded%2820%2C3%29
| If format extension is specified, content gets converted to a corresponding format. Otherwise, the MIME type is derived directly from the content. |
Supported format extensions are .jpg, .png and .gif. Other extensions may still work but are not supported. |
Content with MIME type image/gif and image/svg+xml returned as-is without any processing. |
Example of an image URL on the root of a live site behind virtualhost:
/_/image/c82262a6-77d6-4276-b0e7-fe82f4eb57b8:1feb57ed672f8c3b9fd6d4614878dafd9882298b/block-300-100/content-name.png.jpg?background=0x777777&filter=sharpen%28%29%3Brounded%2820%2C3%29
Scaling methods

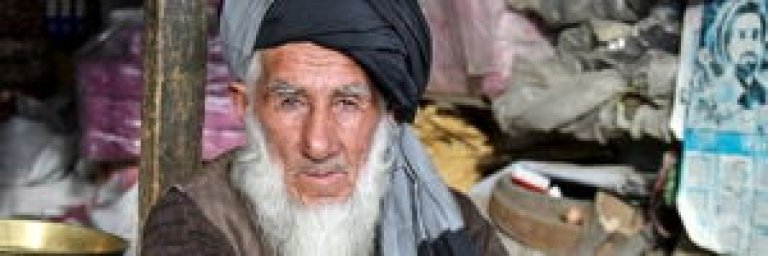

Block
Scales the image to fill the given dimensions, then crops off any overflowing content based on the focal point position. This is the most common scaling method for web purposes, since the image will always have the exact dimensions as the given input.
- Arguments
-
Both arguments below are required:
- width
-
Width in pixels
- height
-
Height in pixels
- Example
block-300-100
Height
Scales the image proportionally to match the given height. No cropping. Width may vary depending on aspect ratio.
- Arguments
-
- height
-
Height in pixels
- Example
height-300
Max
Scales the image proportionally until the longest edge has the given number of pixels. Typically used if the image will be displayed inside a square container but must not be cropped (e.g. diagrams or logo images that must fit inside a square table cell)
- Arguments
-
- size
-
The length of the longest edge in pixels. Required.
- Example
max-300

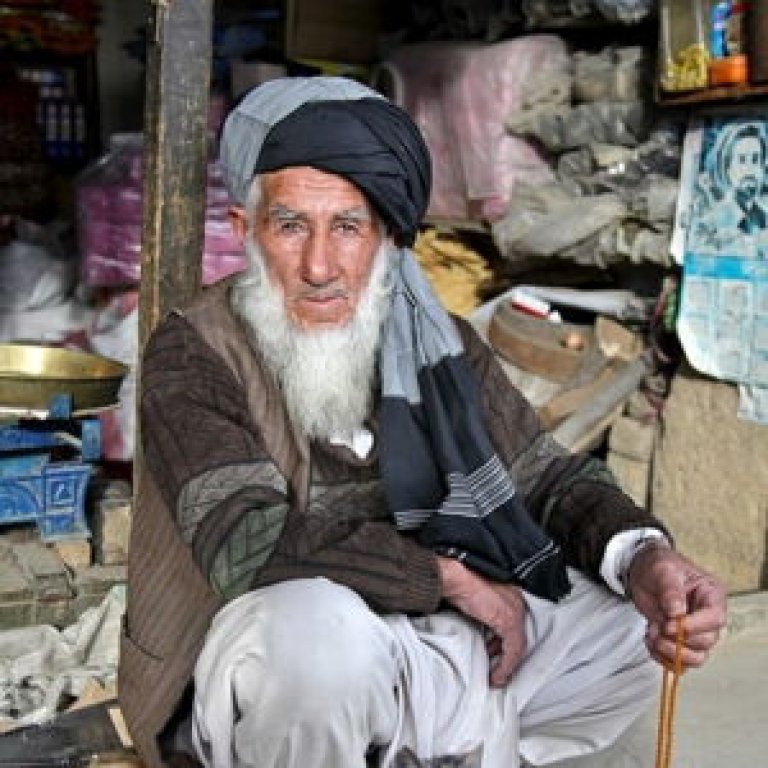

Square
Scales the image proprtionally to match the shortest edge, resulting in a square image. Any overflowing content will be cropped based on the focal point position.
- Arguments
-
- size
-
The length of both sides in pixels
- Example
square-300
Wide
Similar to scale Block, but will never crop off the left/right sides of the image. The resulting image would always be as wide as the given width, but if the image has a wider aspect ratio than given, it would end up being lower than the given height.
- Arguments
-
- width
-
Width in pixels
- height
-
Maximum height in pixels
- Example
wide-300-100
Width
Scales the image proportionally to match the given width. No cropping. Height may vary depending on aspect ratio.
- Arguments
-
- width
-
Width in pixels
- Example
width-300
Filters
| Some (but not all) of the filters below perform under-the-hood calculations measured in pixels, which means that images of various dimensions will have the effect applied differently. This is especially apparent if the images are forced to fit a specific container size on the client. In order to ensure a consistent result, consider upscaling your image to a specific size before applying the filter, or downscale if the effect should be larger in relation to the image. |

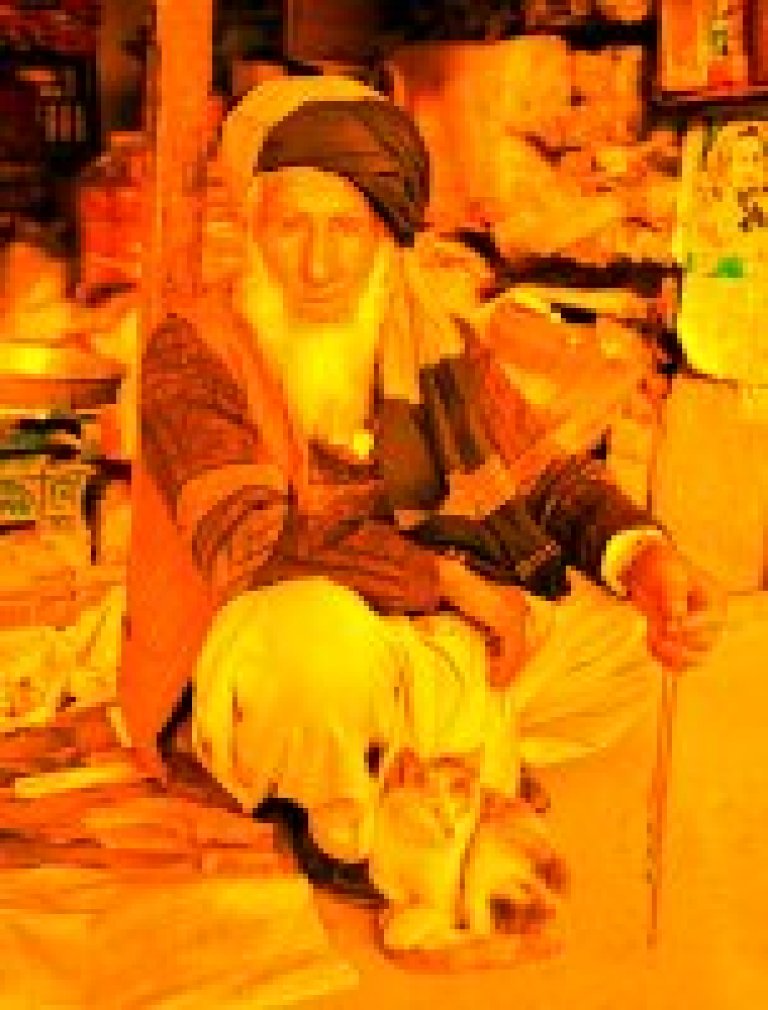

RGB Adjust
Adjust the red, green and blue levels in the image.
Values between -1.0 and 0.0 subtract that color channel in the image. A value of 0 results in no adjustment for that channel. Values between 0 and 255 boosts that color channel in the image. The boost is logarithmic, so small boost values between 0 and 1 are often enough.
- Arguments
-
- red
-
Decimal value with the adjusted red level for the image. Required.
- green
-
Decimal value with the adjusted green level for the image. Required.
- blue
-
Decimal value with the adjusted blue level for the image. Required.
- Example
rgbadjust(0.0,-1.0,-1.0) (1) rgbadjust(0.0,0.0,-1.0) (2) rgbadjust(1.0,0.0,-1.0) (3)
| 1 | Red channel only, otherwise black |
| 2 | No blue channel, otherwise unmodified |
| 3 | No blue channel, boosted red channel (as seen in the image above) |

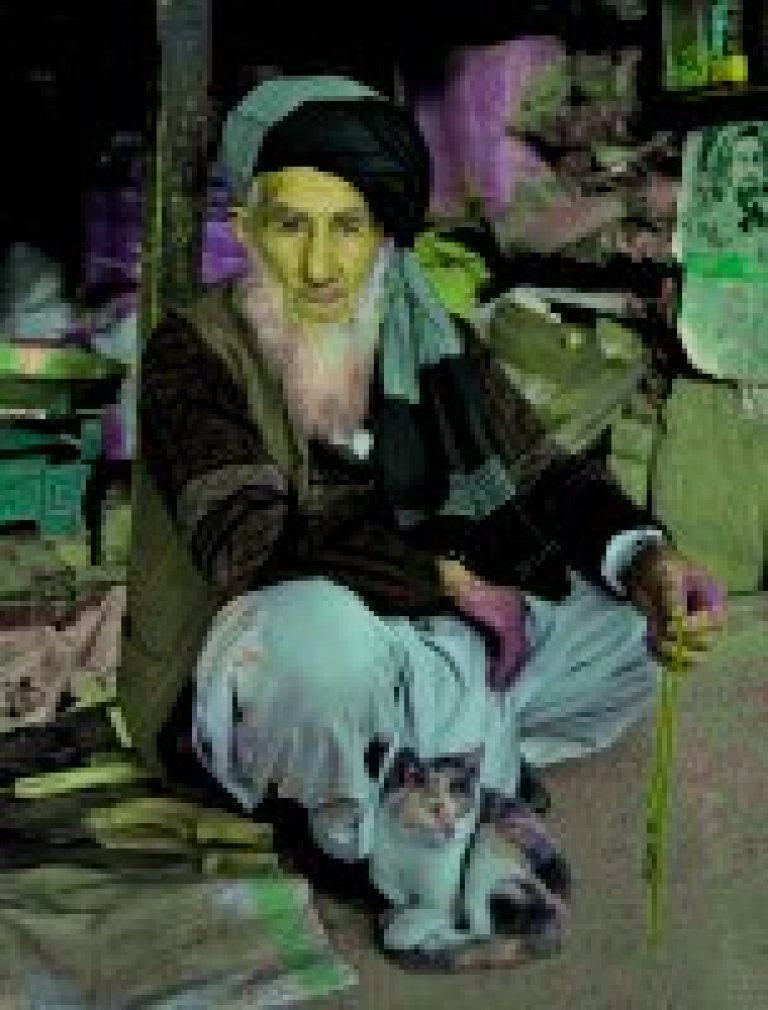

HSB Adjust
Adjust the hue, saturation and brightness levels in the image.
| This effect is a lot more rudimentary than the Hue/Saturation effect in Photoshop. For instance, when reducing saturation, all colors below a certain threshold are strictly converted to grayscale instead of being desaturated. The use of values outside of +/-0.2 is not recommended. |
- Arguments
-
- hue
-
Decimal value from -1 to 1, of how far around the color wheel to move the hue of the image. Required. (0 is no change)
- saturation
-
Decimal value from -1 to 1 to adjust the intensity of the colors in the image. Default: 0
- brightness
-
Decimal value from -1 to 1 to adjust the brightness of the image. Default: 0
- Examples
hsbadjust(-0.15,0.2,-0.2)
Block
Reduces the image down to a mosaic of larger square pixels. Also known as pixelate.
- Arguments
-
- size
-
The size of each square mosaic block, in pixels. Default: 2
- Example
block(5)
Blur
Applies a Gaussian blur-like effect, based on the given pixel radius. The opposite of Sharpen, although it’s not possible to reverse a sharpen with a blur.
- Arguments
-
- radius
-
How many pixels of blur to apply. Higher values lead to a more blurry image, values below 2 result in no blur. Default: 2
- Example
blur(8)

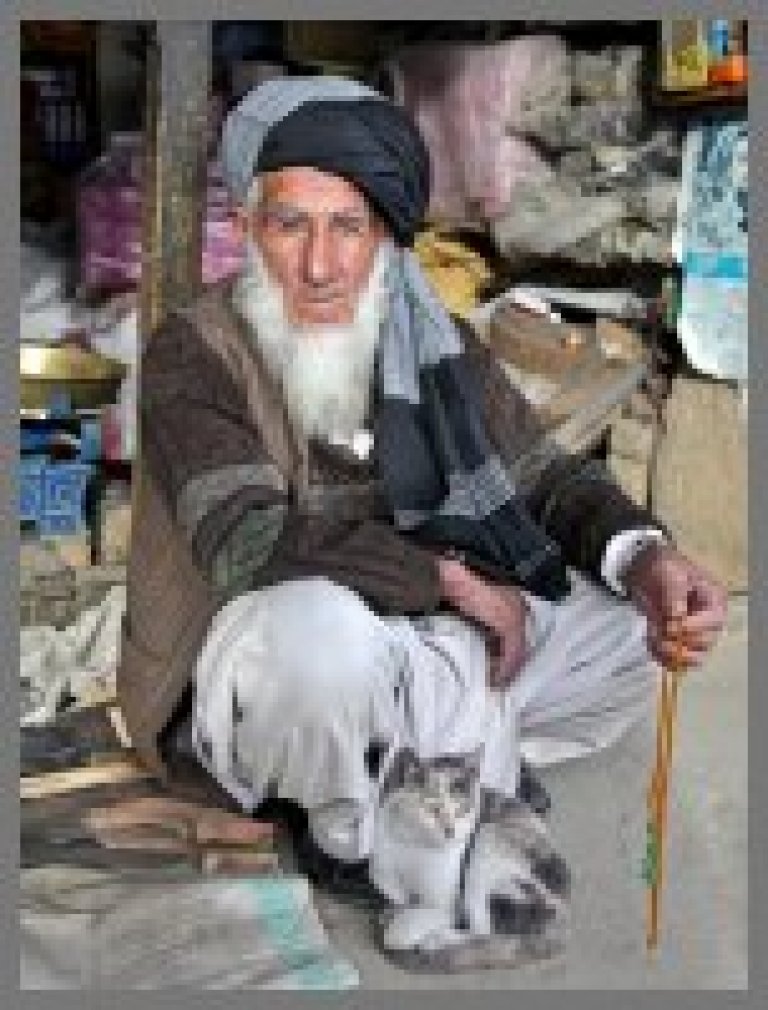

Border
Applies a rectangular border with a solid color around the image.
- Arguments
-
- width
-
The width of the border in pixels. Default: 2
- color
-
The color of the border as a decimal or hexadecimal number. Default: 0x000000 (black)
- Examples
border(5) border(4, 0x777777)

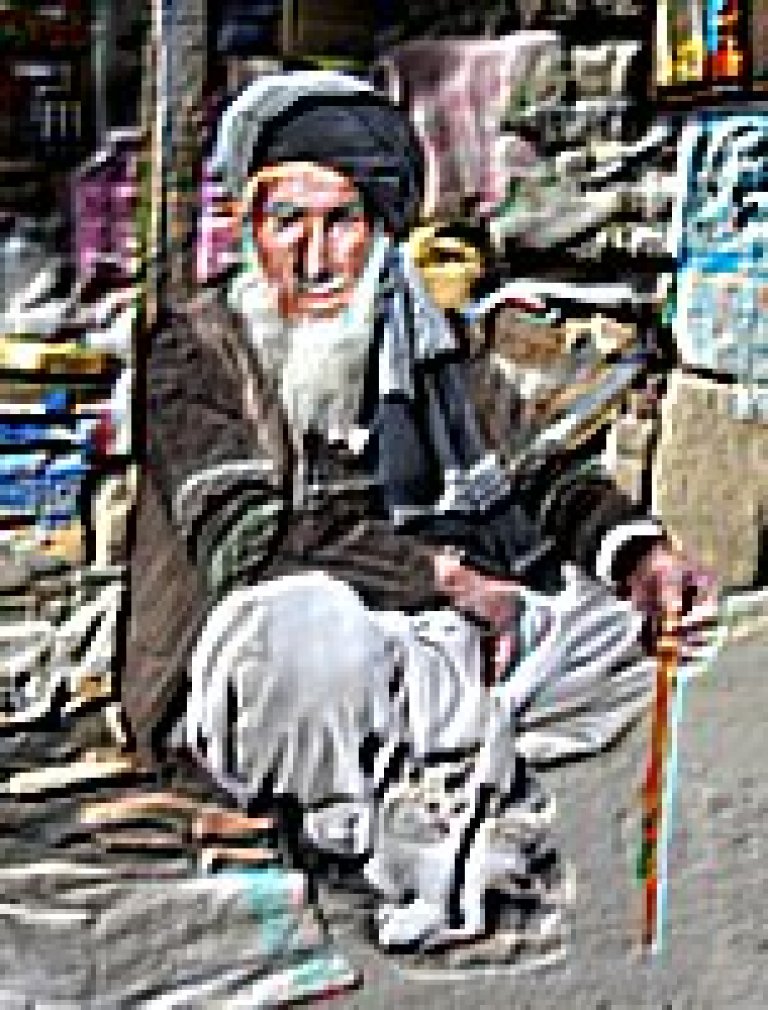

Bump
Creates a pseudo-3D bevel effect based on edge contours in the image.
- Arguments
-
No arguments
- Example
bump()

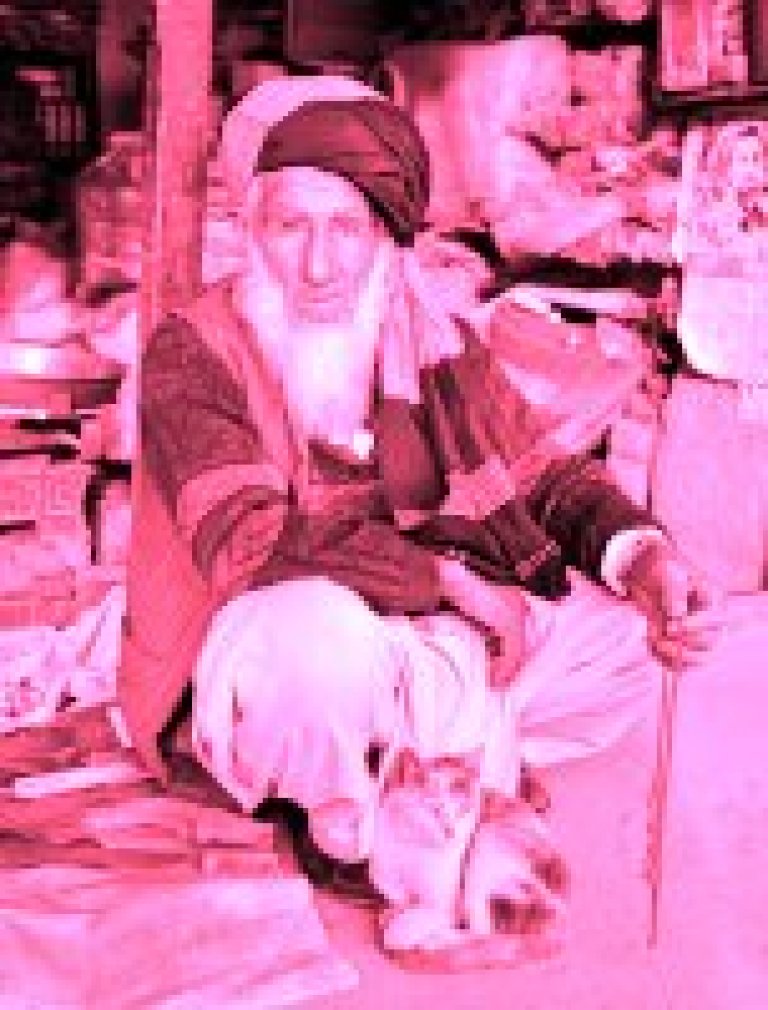

Colorize
Makes a grayscale image, then applies a tint based on the color given with red, green and blue values.
- Arguments
-
- red
-
Red boost value. Default: 1
- green
-
Green boost value. Default: 1
- blue
-
Blue boost value. Default: 1
- Example
colorize(3,1,1.5)
HSB Colorize
Makes a grayscale image, then applies a tint based on the color given with hue, saturation, and brightness.
- Arguments
-
- color
-
The tint color as a decimal or hexadecimal number. Default: 0xFFFFFF
- Example
hsbcolorize(0x00AAAA)

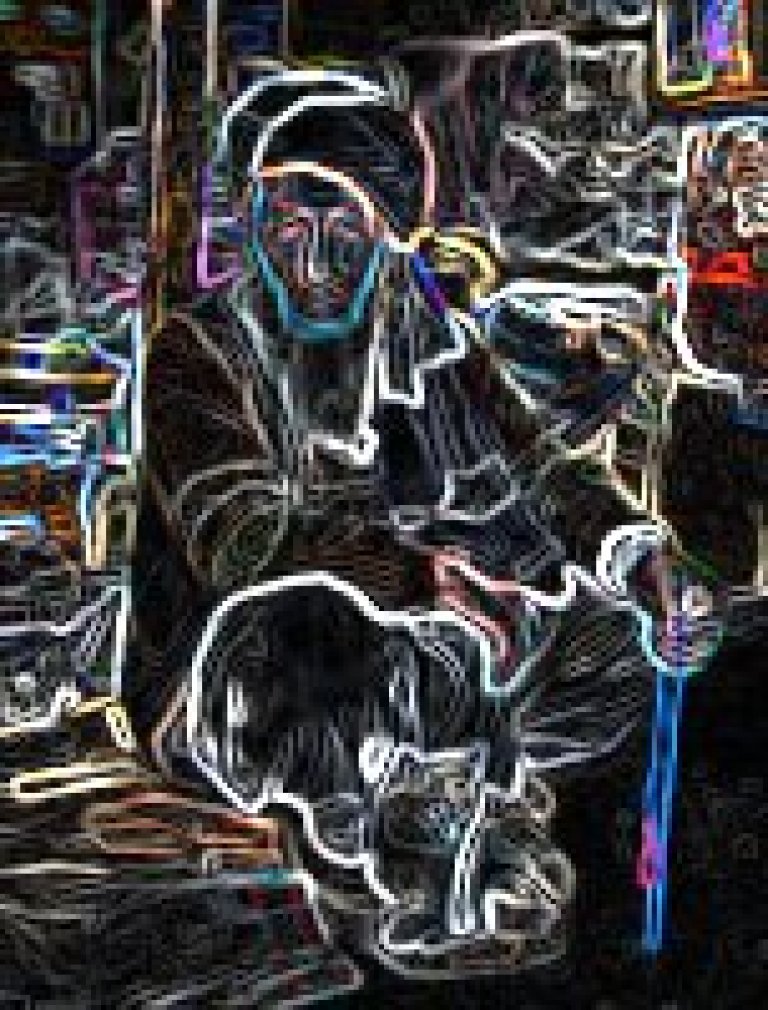

Edge
Creates an abstract image by brightening every edge contour and darkening every even surface of the image.
- Arguments
-
No arguments
- Example
edge()

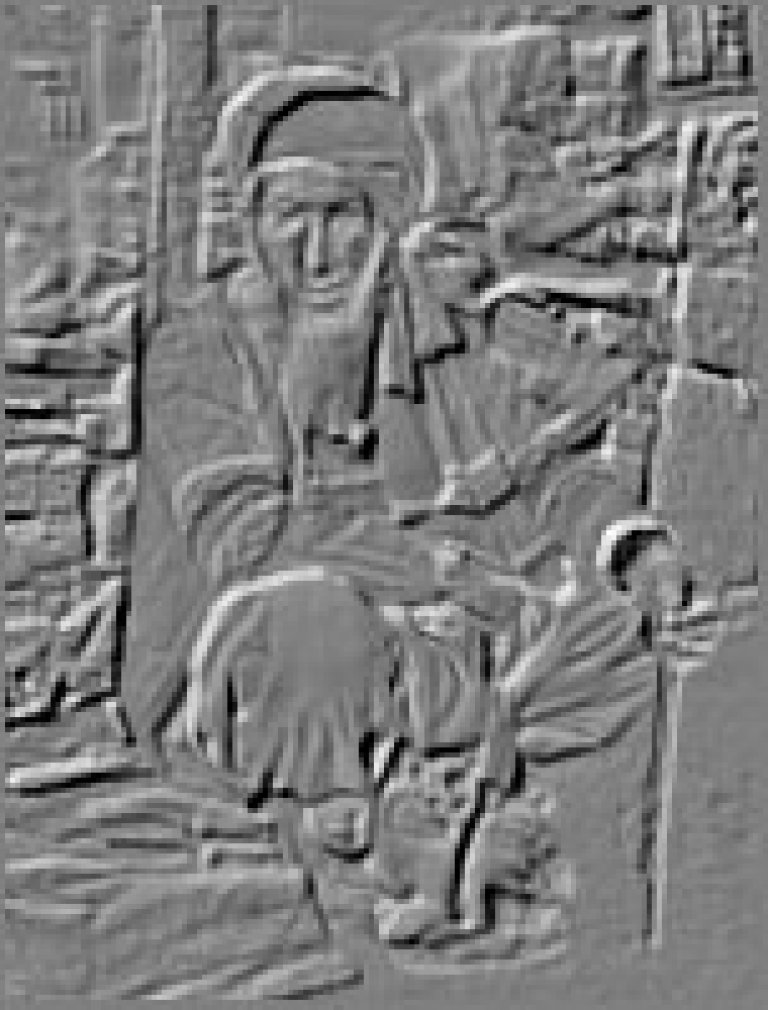

Emboss
Creates a grayscale image with a pseudo-3D bevel effect based on edge contours in the image. Areas with no contours are normalized to a neutral gray. If colors need to be kept as they were, consider using Bump instead.
- Arguments
-
No arguments
- Example
emboss()

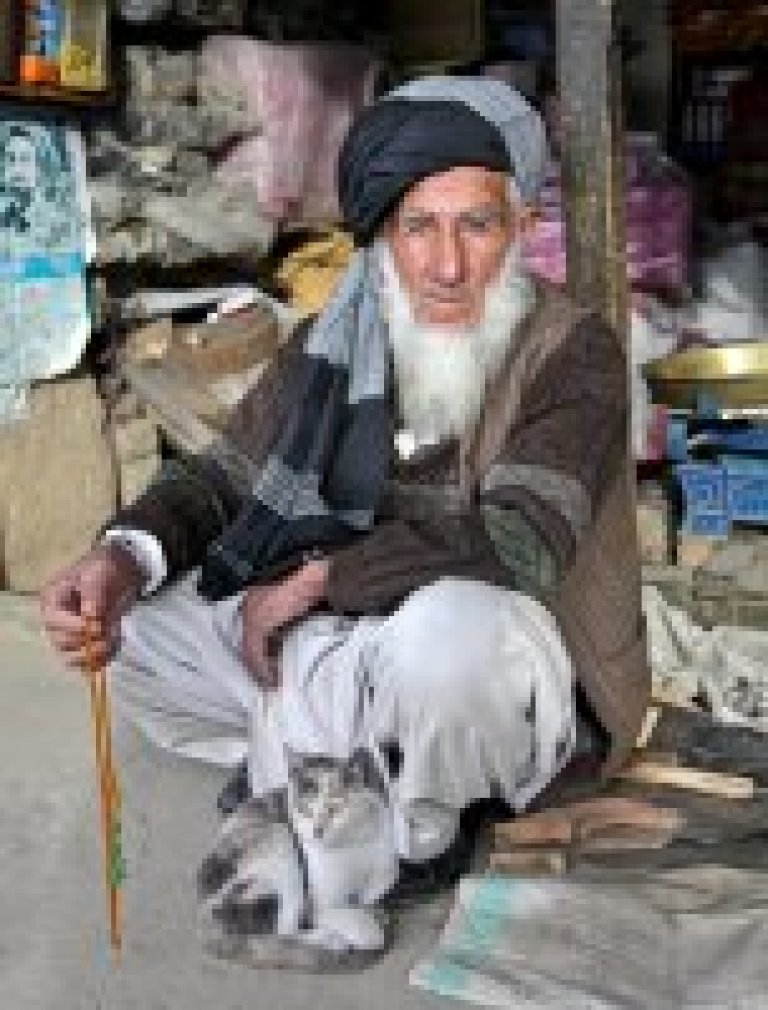

Flip horizontally
Flips an image horizontally (mirrored left-right).
- Arguments
-
No arguments
- Example
fliph()

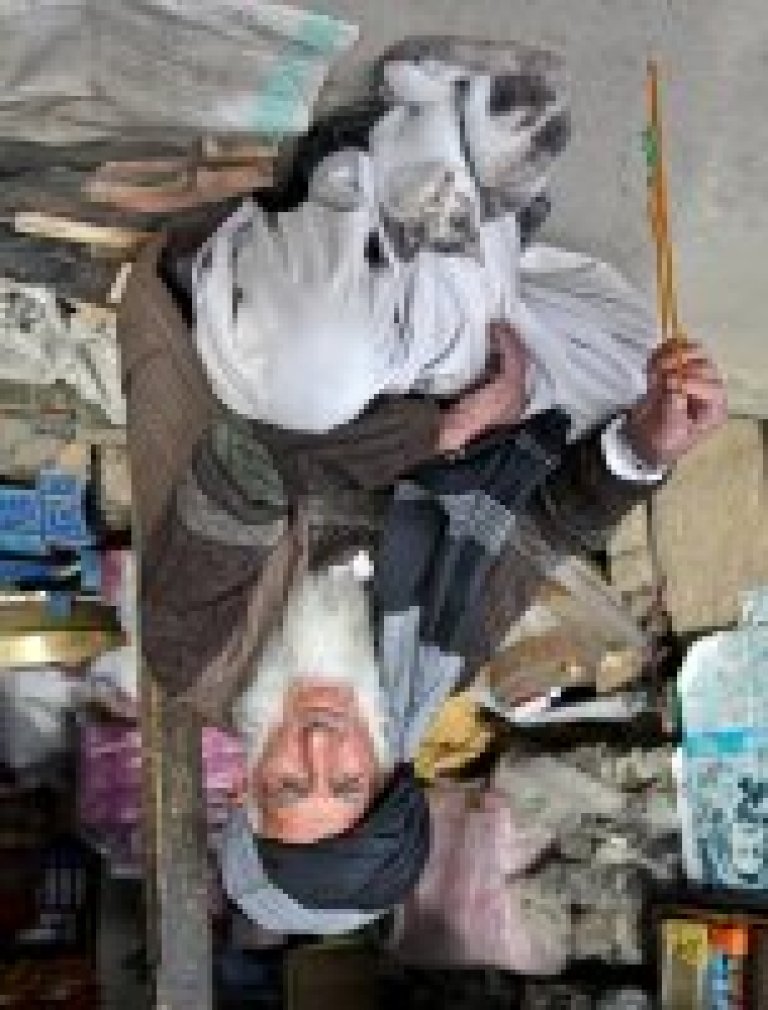

Flip vertically
Flips an image vertically (mirrored upside down, like a water reflection).
- Arguments
-
No arguments
- Example
flipv()

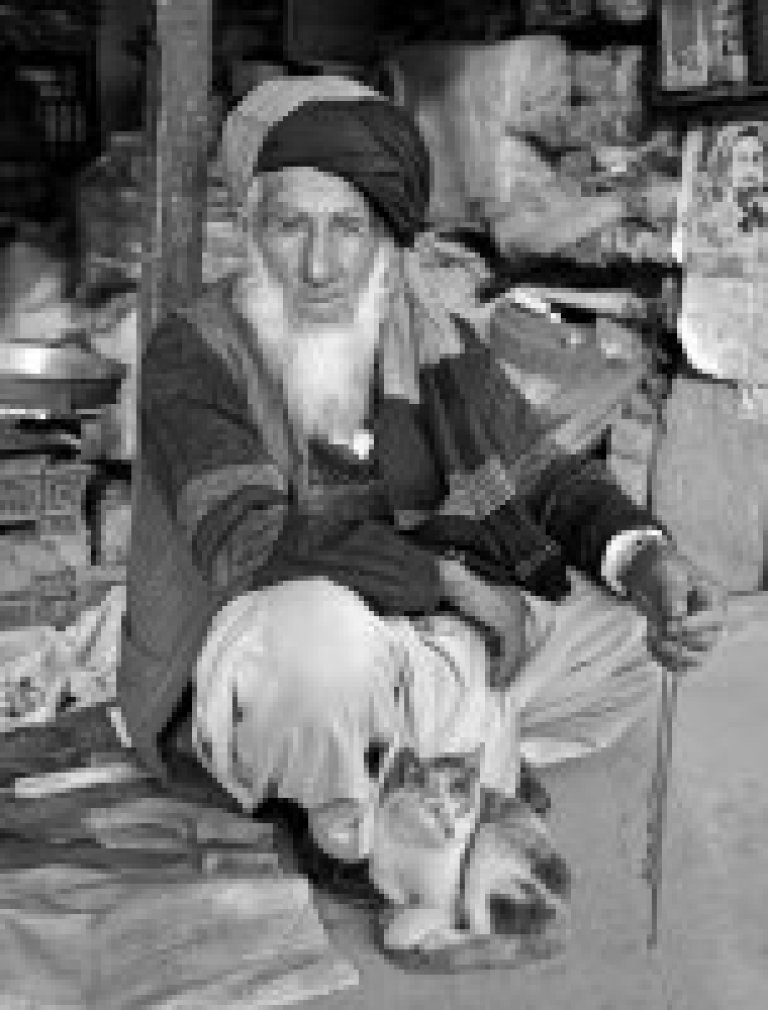

Grayscale
Creates a grayscale variant of the image.
| Use an adjustment filter in front of the grayscale filter in order to affect how bright or dark different portions of the image will be, e.g. to highlight skin tones. |
- Arguments
-
No arguments
- Example
grayscale()

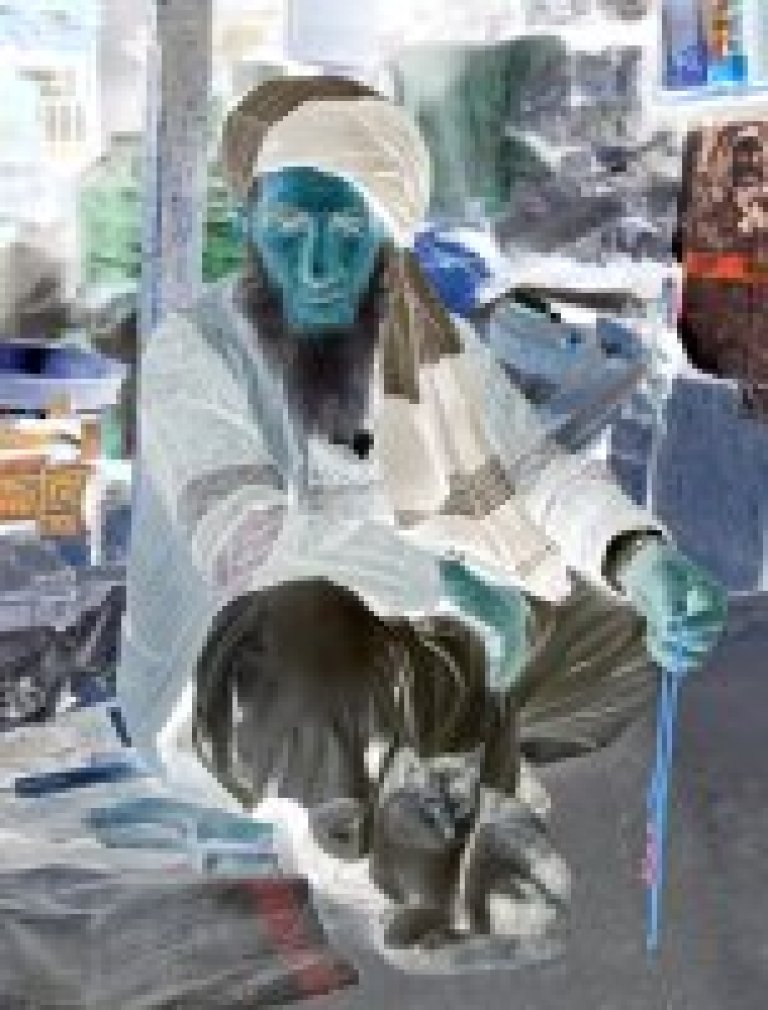

Invert
Inverts the colors and brightness of the image.
| The human eye does not have a linear response across the whole visible spectrum, so inverting the image may have unexpected effects on text contrast in relation to the processed image. |
- Arguments
-
No arguments
- Example
invert()

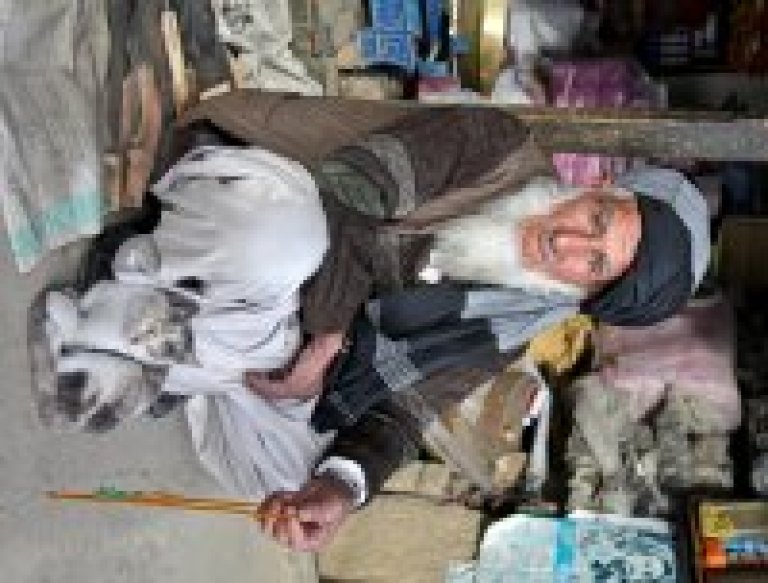

Rotate 90
Rotates an image clockwise 90 degrees. Width and height dimensions get swapped, e.g. a 200x100 pixel image becomes 100x200 pixels.
- Arguments
-
No arguments
- Example
rotate90()

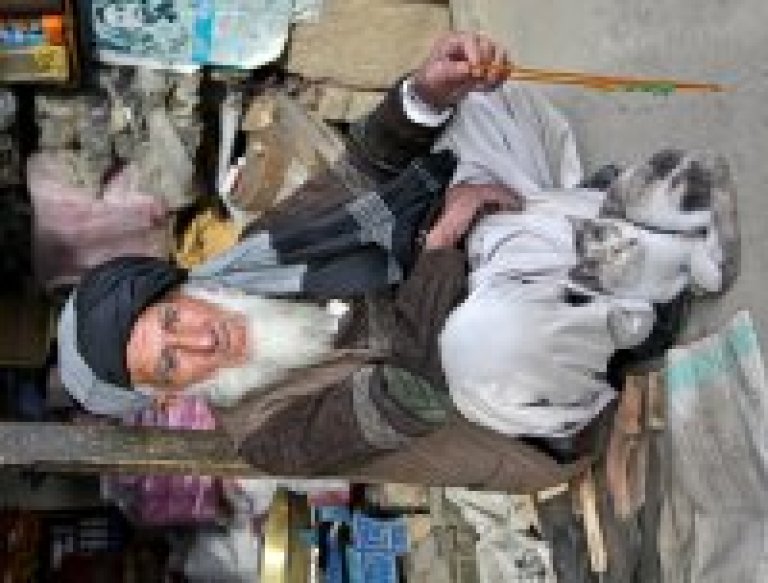

Rotate 270
Rotates an image clockwise 270 degrees (i.e. counter-clockwise 90 degrees). Width and height dimensions get swapped, e.g. a 200x100 pixel image becomes 100x200 pixels.
- Arguments
-
No arguments
- Example
rotate270()
Rounded
Rounds the corners of the image, with an option of adding a border around the rounded image which also has rounded corners.
| To create a circular image, apply a scale square at a desired number of pixels for the diameter, and then apply rounded with radius set to half that amount of pixels for the radius. |
| If the image format has been set to PNG, the negative space outside the rounded corners is rendered as transparent. If the image format has been set to JPG, the negative space outside the rounded corners is rendered as the background color. |
- Arguments
-
- radius
-
The number of pixels from each corner where the rounding starts. Default: 10
- borderSize
-
The width of the border in pixels. Default: 0
- borderColor
-
The color of the border as a decimal or hexadecimal number. Default: 0 / 0x000000 (black)
- Examples
rounded() rounded(15) rounded(10,1) rounded(8,4,0x777777)
Sepia
Creates a grayscale image with a yellow-reddish tint to make it look like an old photograph.
- Arguments
-
- depth
-
The brightness of the tint. Default: 20
- Examples
sepia() sepia(25)
Sharpen
Applies a sharpening filter to the image, making edge contours more pronounced. The opposite of Blur, although it’s not possible to reverse a blur with a sharpen.
| If the source image has a lot of compression artifacts or has very low resolution, sharpening the image will make these artifacts stand out even more, which usually is undesired. |
- Arguments
-
No arguments
- Example
sharpen()
