Developer Docs Xp Next Cms Schemas Field Set

Field Set

Contents

A field set may be used to group items visually under a common label and distinguish this group from the rest of the form.

Appearance

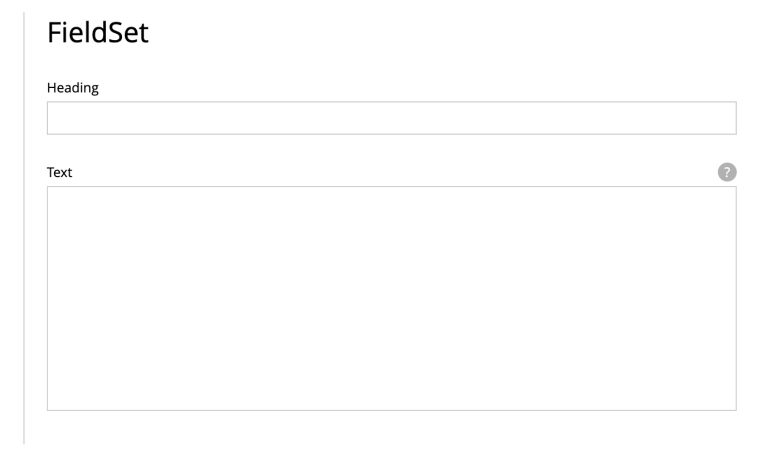

Field sets seen in Content Studio.

Example of a fieldset

Usage

Sample field-set definition containing a single input-type
<field-set>  (1)
  <label i18n="metadata.label">Metadata</label>
  <items>  (2)
    <input name="tags" type="Tag">
      <label>Tags for tag cloud</label>
      <occurrences minimum="0" maximum="5"/>
    </input>
  </items>
</field-set>
1 field-set does not need a name since it is only visual, and does not affect the data model
2 items allow placement of form items to be contained within it

Output

Field sets do not affect the output of a schema.
