HtmlArea input type
Contents
A field for entering multi-line text with rich-formatting options.

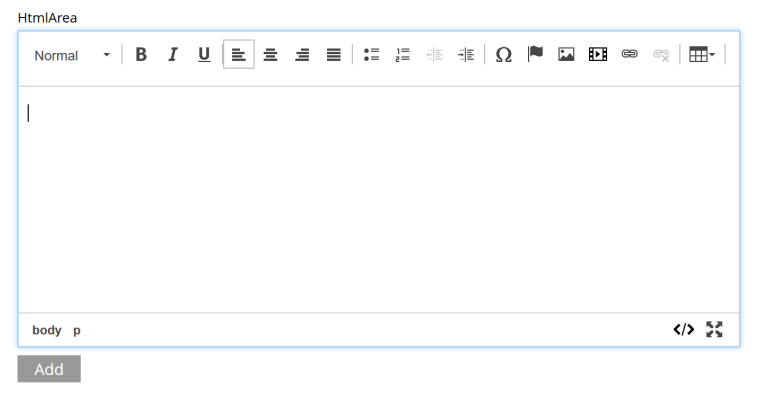

Appearance
The rich text editor as seen with default configuration. The Add button indicated that this setup also supports multiple occurrences of the editor.
Usage
<input name="myhtmlarea" type="HtmlArea">
<label>My HtmlArea</label>
<default><h3>Enter description here</h3></default> (1)
<config>
<exclude>*</exclude> (2)
<include>JustifyLeft JustifyRight | Bold Italic</include> (3)
<allowHeadings>h2 h4 h6</allowHeadings> (4)
</config>
</input>| 1 | default can contain any valid HTML elements, but tags must be correctly closed since the input type is defined inside an XML. |
| 2 | exclude optionally removes the standard tools from the editor toolbar |
| 3 | include optionally adds more tools to the editor toolbar. |
| 4 | allowHeadings space-separated list of allowed heading tags (from <h1> to <h6>); by default all are allowed |
| If you are manually outputting contents of an HtmlArea input in your template, you might have to use processHtml() function which will process macros and generate correct links inside the HTML content. |
| HTML Area is configured with default set of tools but the toolbar can be customized. Using the config setting you can exclude specific tools from being shown (use "*" to exclude all tools at once) and/or include those that you want to have in the toolbar. Separate tools with a space and use "|" character to group tool buttons together. Complete list of supported tools can be found below. |
Below is the default editor tools configuration:
Format | JustifyBlock JustifyLeft JustifyCenter JustifyRight | BulletedList NumberedList Outdent Indent | SpecialChar Anchor Image Macro Link Unlink | Table | PasteModeSwitcher
Below is the complete list of available editor tools:
| Name | Description |
|---|---|
|
Format |
Text format menu |
|
Bold |
Bold text |
|
Italic |
Italic text |
|
Underline |
Underline text |
|
JustifyBlock |
Justify content |
|
JustifyLeft |
Left align content |
|
JustifyCenter |
Center content |
|
JustifyRight |
Right align content |
|
BulletedList |
Insert a bullet list |
|
NumberedList |
Insert a numbered list |
|
Outdent |
Decrease indent |
|
Indent |
Increase indent |
|
SpecialChar |
Insert a special character |
|
Anchor |
Insert an anchor |
|
Image |
Insert/Edit an image |
|
Macro |
Insert a macro |
|
Link |
Insert/Edit a link |
|
Unlink |
Remove link |
|
Table |
Table format menu |
|
PasteModeSwitcher |
Paste mode (formatted/plain text) |
|
BGColor |
Background color |
|
Blockquote |
Quotation |
|
Copy |
Copy selected text into buffer |
|
CopyFormatting |
Copy formatting |
|
CreateDiv |
Wrap with div |
|
Cut |
Cut selected text into buffer |
|
Font |
Font menu |
|
FontSize |
Font size menu |
|
HorizontalRule |
Insert a horizontal line |
|
ListStyle |
Change style of BulletedList |
|
NewPage |
Clean editor’s content |
|
Preview |
Preview HTML Area contents |
|
Redo |
Repeat last action |
|
RemoveFormat |
Remove formatting |
|
SelectAll |
Select editor’s content |
|
Strike |
Strikethrough over text |
|
Styles |
Text styles menu |
|
Subscript |
Subscript text |
|
Superscript |
Superscript text |
|
TextColor |
Text color |
|
Undo |
Undo last action |
