Regions

Introduction

Regions enable editors to create complex component structures, such as pages. Only page and layout component types can define regions. Each region must have a unique name within the component.

Usage

Regions are declared statically within other components. Below is a sample definition of a page component with a single region main:

Example - page component with a single region

<page>
  <display-name>The main page</display-name>
  <form/>
  <regions>
    <region name="main"/>
  </regions>
</page>

And here is a layout defining three regions:

Sample layout with three regions

<layout>
  <display-name>The main page</display-name>
  <form/>
  <regions>
    <region name="left"/>
    <region name="middle"/>
    <region name="right"/>
  </regions>
</layout>

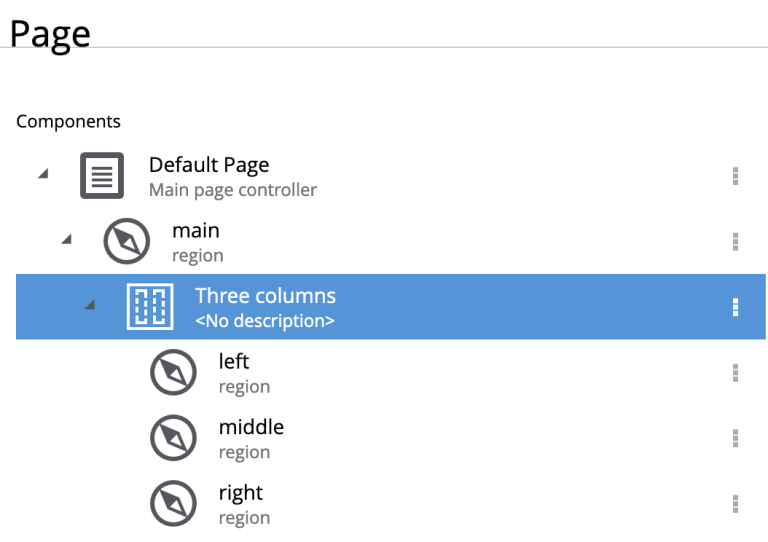

From Content Studio, this is what regions look like in the page form:

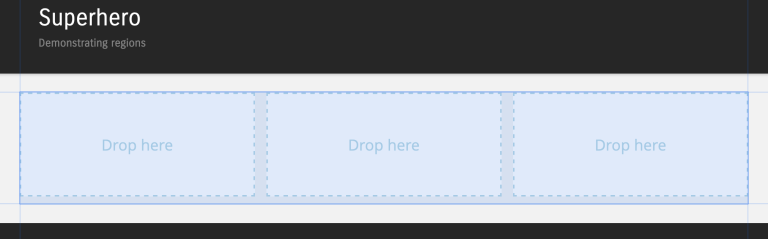

And here is what the the exact same structure might look like in the visual page editor.

Ther dropzones are empty regions.

Output

Using the Content API, you may access a JSON version containing the hierarchical structure of components and regions on the page.

Sample JSON from the Content api

"page": {
    "type": "page",
    "path": "/",
    "descriptor": "com.enonic.app.superhero:default",
    "regions": {
      "main": {
        "components": [
          {
            "path": "/main/0",
            "type": "layout",
            "descriptor": "com.enonic.app.superhero:three-column",
            "config": {},
            "regions": {}
          }
        ],
        "name": "main"
      }
    }
  }

Empty regions are never persisted. Region names are only determined from the component path.
